Water pump for BMW 1500-2000CS 1800ti (1966)

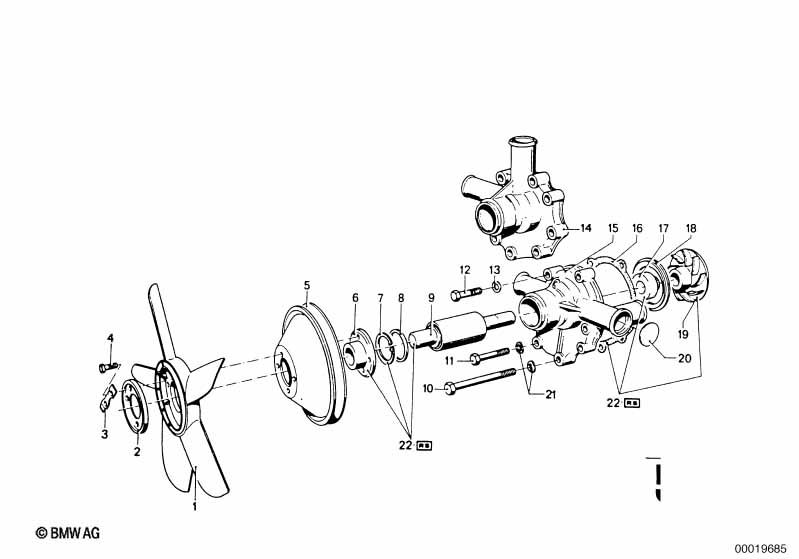

This Water pump technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1966.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fan | D=400MM | 1 | 11520786120 | $33.87 | Shop at ECS Tuning | ||||
| 01 | Fan | D=360MM | 1 | 11521255505 | $33.88 | Shop at ECS Tuning | ||||
| 02 | Compression ring | 1 | 11520686150 | $22.21 | Shop at ECS Tuning | |||||
| 03 | Securing plate | 2 | 11520786160 | $4.97 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M6X18 | 4 | 23317545769 | $0.67 | Shop at ECS Tuning | ||||
| 05 | Pulley | 1 | 02/1962 | 07/1977 | 11510686142 | $52.36 | ENDED | Shop at ECS Tuning | ||
| 10 | Hex bolt | M8X90-8.8-ZNS | 3 | 07119912471 | $2.80 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M6X28-8.8-ZNS | 3 | 07119913021 | $2.30 | Shop at ECS Tuning | ||||
| 13 | Gasket ring | A6.5X9.5-CU | 3 | 07119963034 | $0.70 | Shop at ECS Tuning | ||||
| 16 | Gasket Asbestos Free | 1 | 11511727977 | $1.65 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
