Intake manifold for BMW 1502-2002tii 2002 (1974)

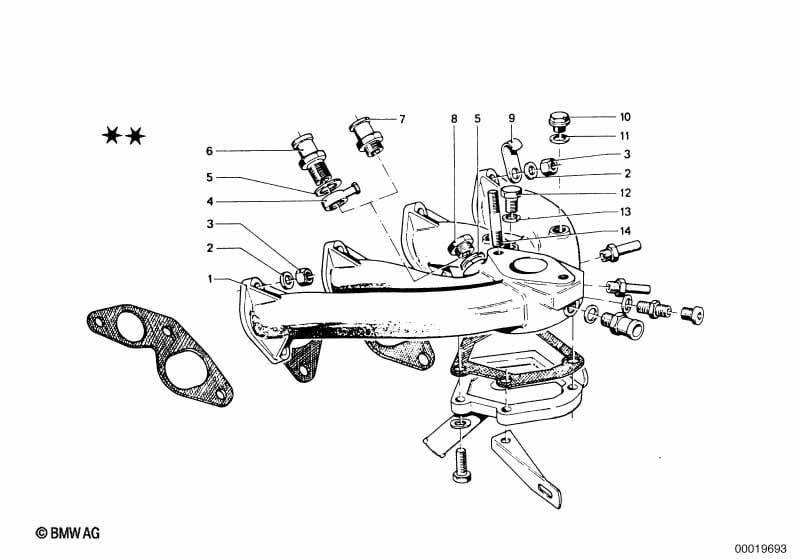

This Intake manifold technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake manifold | 1 | 01/1968 | 12/1975 | 11611251521 | $181.91 | ENDED | Shop at ECS Tuning | ||
| 02 | Wave washer | 8,4X15-ZNS3 | 7 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 02 | Washer | 1 | 11610643134 | $0.30 | Shop at ECS Tuning | |||||
| 03 | Hex nut wiht flange | M8 | 8 | 11611713432 | $0.43 | ENDED | Shop at ECS Tuning | |||
| 05 | Gasket ring | A18X22-AL | 2 | 07119963300 | $0.57 | Shop at ECS Tuning | ||||
| 07 | Connector | M18X1,5/18MM | 1 | 11120543338 | $20.06 | Shop at ECS Tuning | ||||
| 08 | Screw plug | AM18X1,5 | 1 | 07119919246 | $2.40 | ENDED | Shop at ECS Tuning | |||
| 09 | Clamp | 1 | 11610643018 | ENDED | Shop at ECS Tuning | |||||
| 10 | Screw plug | M22X1,5 | 1 | 11121257379 | $2.70 | Shop at ECS Tuning | ||||
| 10 | Screw Plug With Gasket Ring | M22X1,5 | 1 | 11117558632 | Shop at ECS Tuning | |||||
| 11 | Gasket ring | A22X27-AL | 1 | 07119963355 | $0.36 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 13 | Gasket ring | A6.5X9.5-CU | 2 | 07119963034 | $0.70 | Shop at ECS Tuning | ||||
| 14 | Stud bolt | M 8 X 45 | 2 | 07119908333 | ENDED | Shop at ECS Tuning | ||||
| 14 | Stud bolt | M8X45 | 2 | 07119908334 | ENDED | Shop at ECS Tuning |
