Intake manifold for BMW 1502-2002tii 2000 (1972)

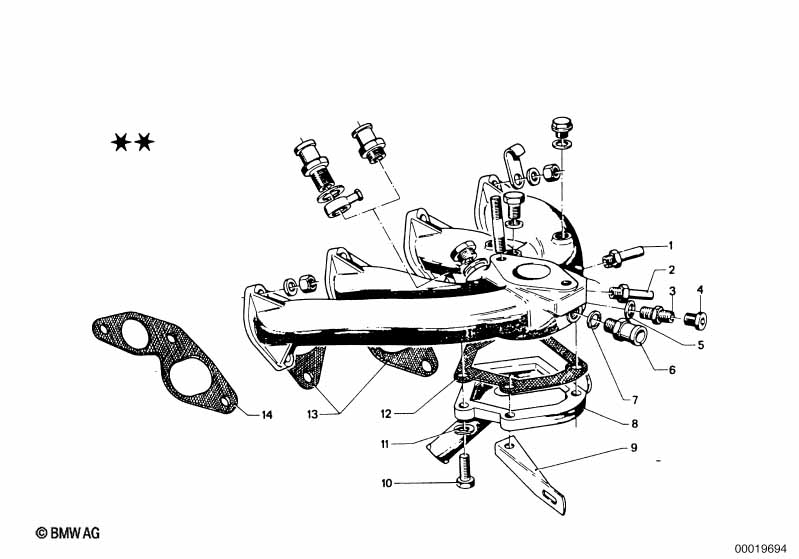

This Intake manifold technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2000. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1972.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Connector | 1 | 11151250896 | $71.42 | ENDED | Shop at ECS Tuning | ||||
| 08 | Cover | 1 | 05/1969 | 08/1973 | 11611251355 | ENDED | Shop at ECS Tuning | |||
| 09 | Holder | 1 | 11610707116 | ENDED | Shop at ECS Tuning | |||||
| 10 | Hex bolt | M6X25 | 5 | 07119913483 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Wave washer | B6 | 5 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 12 | Gasket Asbestos Free | 1 | 11619065693 | $6.07 | Shop at ECS Tuning | |||||
| 13 | Gasket Asbestos Free | 3 | 01/1968 | 12/1975 | 11611727994 | $3.80 | Shop at ECS Tuning | |||
| 14 | Gasket Asbestos Free | 1 | 01/1968 | 12/1975 | 11611727995 | $3.80 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
