Intake manifold for BMW 1502-2002tii 2002 (1971)

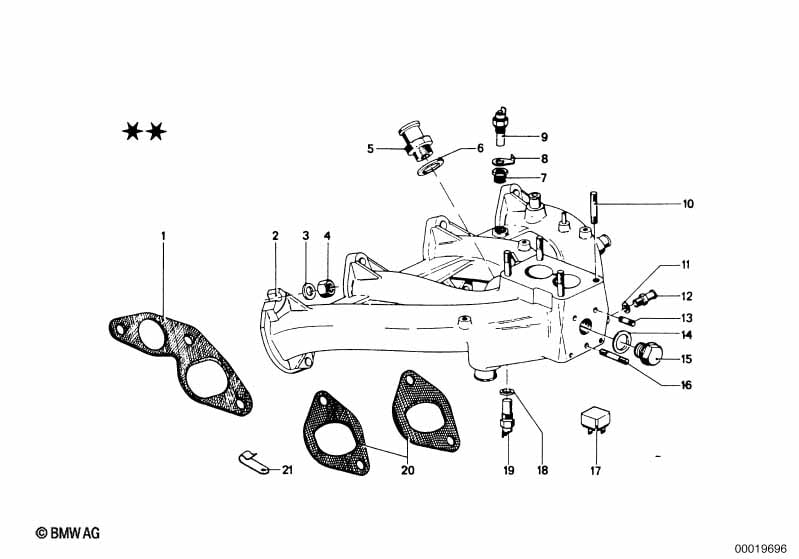

This Intake manifold technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Wave washer | 8,4X15-ZNS3 | 7 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Stud bolt | M8X35-8.8 ZN | 4 | 07129908132 | $0.71 | Shop at ECS Tuning | ||||
| 14 | Gasket ring | A22X27-AL | 1 | 07119963355 | $0.36 | Shop at ECS Tuning | ||||
| 15 | Screw plug | M22X1,5 | 1 | 11121257379 | $2.70 | Shop at ECS Tuning | ||||
| 15 | Screw Plug With Gasket Ring | M22X1,5 | 1 | 11117558632 | Shop at ECS Tuning | |||||
| 17 | Relay, change-over contact,signal violet | 1 | 61361388911 | $13.96 | Shop at ECS Tuning | |||||
| 18 | Gasket ring | A14X18-AL | 1 | 07119963200 | $0.38 | Shop at ECS Tuning |
