Exhaust manifold for BMW 1502-2002tii 2002 (1973)

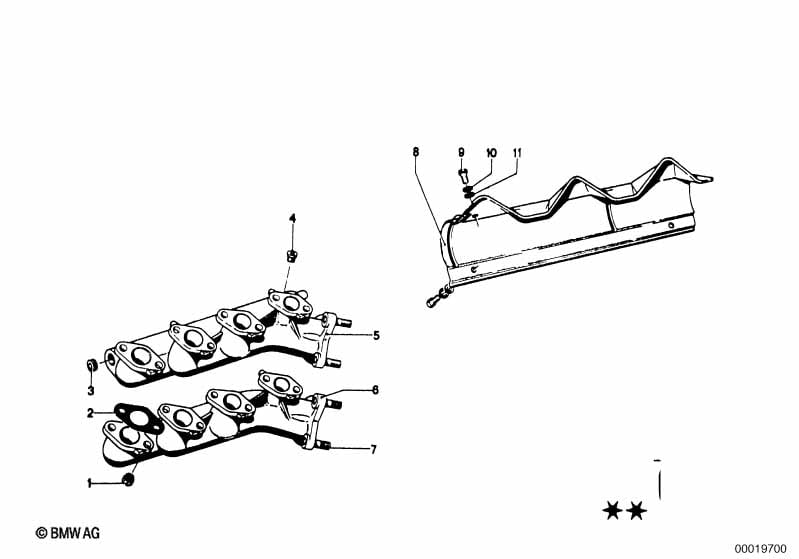

This Exhaust manifold technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex nut | M8 SW12 | 8 | 11621744323 | $0.85 | Shop at ECS Tuning | ||||
| 02 | Gasket Asbestos Free | 4 | 01/1968 | 07/1976 | 11621723839 | Shop at ECS Tuning | ||||
| 05 | Exhaust manifold | 1 | 02/1965 | 12/1975 | 11621265449 | $402.05 | ENDED | Shop at ECS Tuning | ||
| 05 | Exhaust manifold | 1 | 01/1968 | 10/1975 | 11621251037 | ENDED | Shop at ECS Tuning | |||
| 07 | Stud bolt | M10X25 | 3 | 07119909117 | $1.52 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M6X10-Z1 | 4 | 07119915057 | $3.05 | Shop at ECS Tuning | ||||
| 10 | Wave washer | B6 | 4 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 11 | Washer | A6,4-ZNNIV SI | 4 | 07119904202 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2002 Exhaust manifold?
- This technical diagram illustrates the Exhaust manifold within the Engine group for the 1502-2002tii 2002 produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Hex nut (Part #11621744323).
- Which models use the hardware listed in this Exhaust manifold?
- The hardware and components featured in the Exhaust manifold are specific to the 1502-2002tii 2002 produced during 1973. These technical specifications ensure that parts like the Hex nut (11621744323) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exhaust manifold assembly?
- Each item in the Exhaust manifold corresponds to the numbered list below the illustration. For the 1502-2002tii 2002, you can identify the Hex nut by locating its position on the schematic, which then links to the official BMW part number 11621744323 for the Engine section.
