Engine Suspension for BMW 1502-2002tii 2002 (1973)

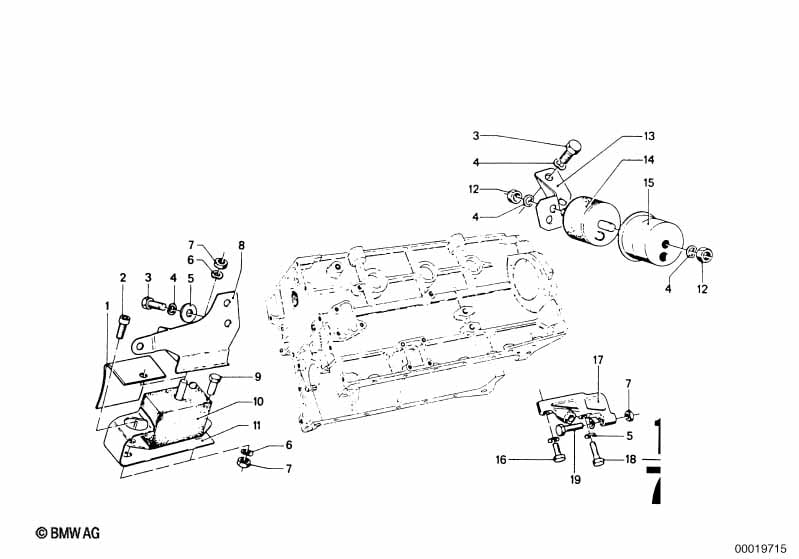

This Engine Suspension technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Fillister-head screw | M8X20-8.8 ZN | 1 | 03/1966 | 07/1977 | 07119919969 | $0.78 | Shop at ECS Tuning | ||
| 03 | Hex bolt | M10X18-8.8-ZNS3 | 5 | 03/1966 | 07/1976 | 07119904033 | $0.65 | Shop at ECS Tuning | ||
| 04 | Wave washer | B10-ZNS3 | 7 | 07119904463 | Shop at ECS Tuning | |||||
| 06 | Wave washer | 8,4X15-ZNS3 | 7 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M8-8-ZNS3 | 4 | 07/1977 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 07 | Hex nut | M8-8-ZNNIV SI | 4 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 08 | Supporting bracket right | 1 | 03/1966 | 07/1977 | 11811103865 | $34.51 | Shop at ECS Tuning | |||
| 09 | Hex bolt | M8X20-ZNNIV SI | 1 | 03/1966 | 07/1977 | 07119903039 | Shop at ECS Tuning | |||
| 10 | Rubber mounting right | 1 | 03/1966 | 07/1977 | 11819057213 | $38.81 | Shop at ECS Tuning | |||
| 11 | Stopper | 1 | 11811101273 | $5.97 | ENDED | Shop at ECS Tuning | ||||
| 12 | Hex nut | M10-8-ZNS | 2 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 13 | Bow | 1 | 11811103528 | $5.46 | Shop at ECS Tuning | |||||
| 14 | Rubber mounting left | RUND | 1 | 11810151625 | $41.84 | Shop at ECS Tuning | ||||
| 14 | Rubber mounting left | 1 | 11811109351 | Shop at ECS Tuning | ||||||
| 15 | Cap | RUND | 1 | 11810696116 | $28.44 | ENDED | Shop at ECS Tuning | |||
| 16 | Hex bolt | M8X30-ZN | 1 | 03/1966 | 07/1977 | 07119913662 | $0.22 | Shop at ECS Tuning | ||
| 18 | Hex bolt | M8X50 | 1 | 03/1966 | 07/1977 | 07119904533 | $2.84 | Shop at ECS Tuning | ||
| 19 | Hex bolt | M8X45-8.8-ZNS3 | 1 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 19 | Hex bolt | M8X70 | 1 | 07119912800 | $2.18 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2002 Engine Suspension?
- This technical diagram illustrates the Engine Suspension within the Engine group for the 1502-2002tii 2002 produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Fillister-head screw (Part #07119919969).
- Which models use the hardware listed in this Engine Suspension?
- The hardware and components featured in the Engine Suspension are specific to the 1502-2002tii 2002 produced during 1973. These technical specifications ensure that parts like the Fillister-head screw (07119919969) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine Suspension assembly?
- Each item in the Engine Suspension corresponds to the numbered list below the illustration. For the 1502-2002tii 2002, you can identify the Fillister-head screw by locating its position on the schematic, which then links to the official BMW part number 07119919969 for the Engine section.
