Engine housing for BMW 1502-2002tii 1602 (1975)

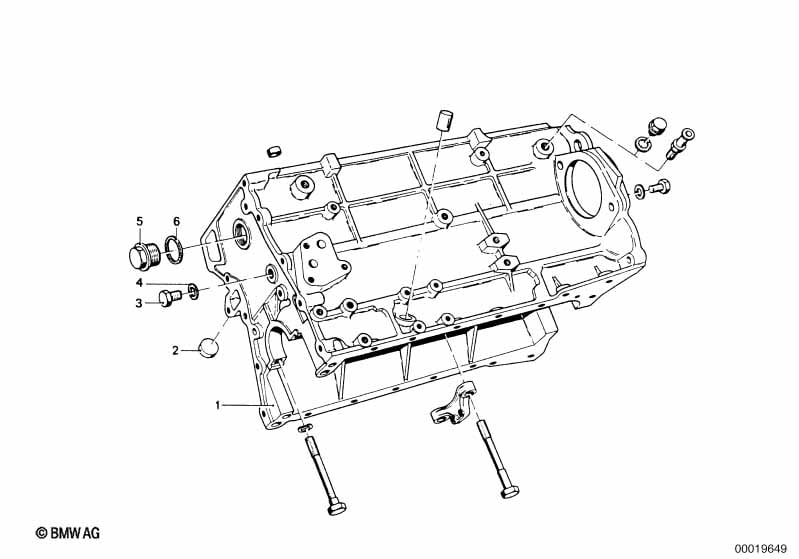

This Engine housing technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine block without pistons | D=84MM | 1 | 11111299866 | $515.53 | Shop at ECS Tuning | ||||
| 02 | Cover lid | D=36MM | 3 | 11111717939 | $2.20 | Shop at ECS Tuning | ||||
| 03 | Screw plug | AM12X1,5 | 1 | 07119909703 | Shop at ECS Tuning | |||||
| 03 | Screw plug | AM14X1,5 | 1 | 07119909704 | Shop at ECS Tuning | |||||
| 04 | Gasket ring | A12X15,5 AL | 1 | 07119963130 | $0.09 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Screw plug | AM12X1,5 | X | 07119919225 | $0.85 | ENDED | Shop at ECS Tuning | |||
| 04 | Gasket ring | A14X18-AL | 1 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||

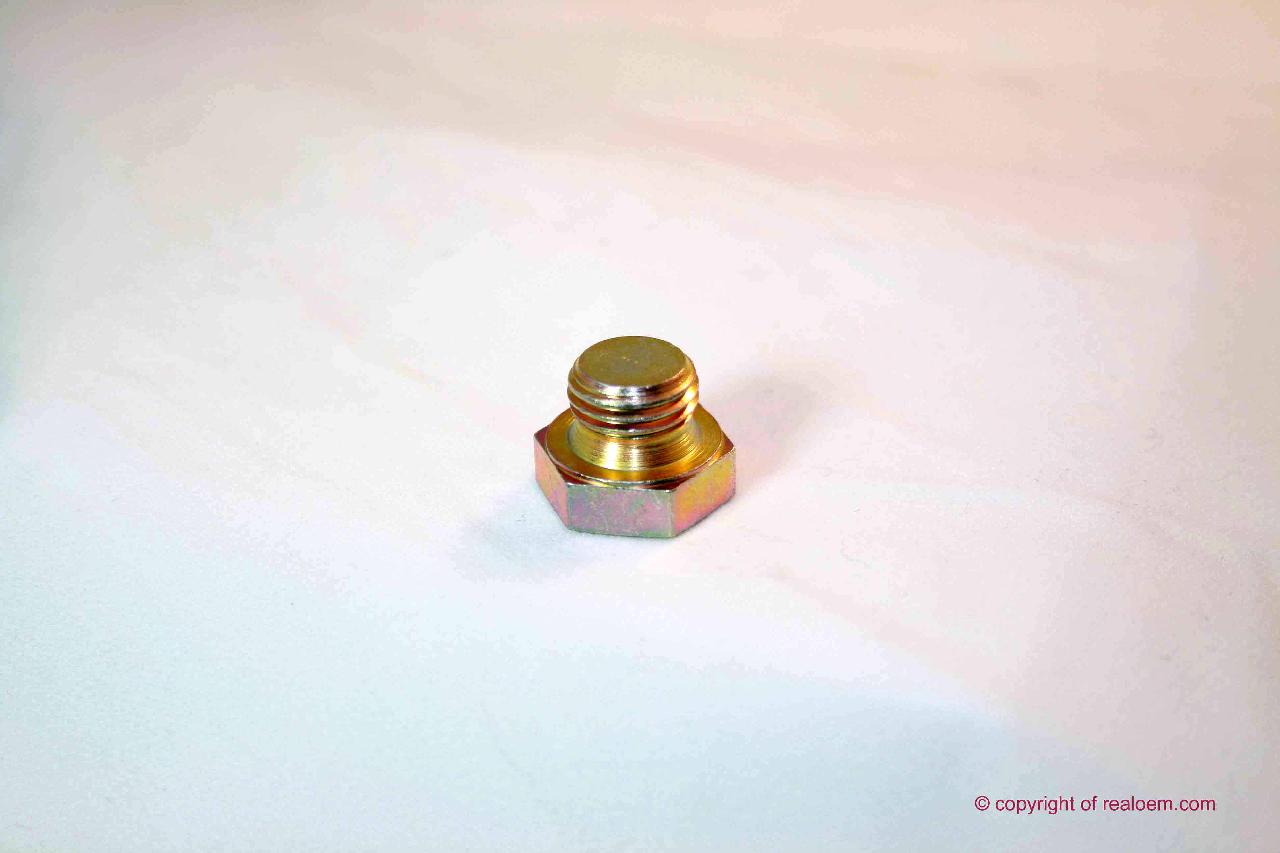

| -- | Screw plug | AM14X1,5 | X | 07119919228 | $0.85 | ENDED | Shop at ECS Tuning | |||
| 05 | Screw plug | M30X1,5 | 1 | 07119919039 | $3.11 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | A30X36-AL | 1 | 24111219126 | $0.71 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
