Piston for BMW 1500-2000CS 2000ti (1968)

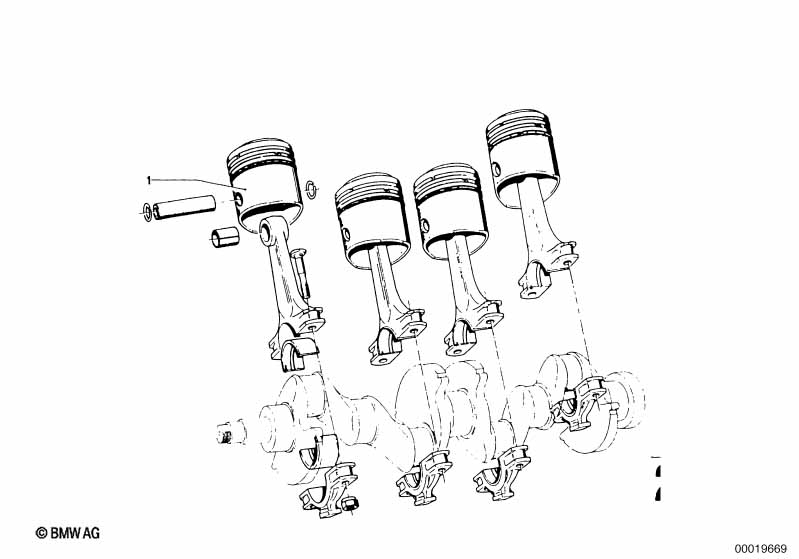

This Piston technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ZK=121 ti / Tii | |||||||||
| 01 | Piston | MAHLE 89,96 | 4 | 09/1965 | 08/1973 | 11251251864 | ENDED | Shop at ECS Tuning | ||
| 01 | Piston | MAHLE 89,97 | 4 | 09/1965 | 08/1973 | 11251251865 | ENDED | Shop at ECS Tuning | ||
| 01 | Piston | MAHLE 88,98 | 4 | 09/1965 | 08/1973 | 11251251866 | ENDED | Shop at ECS Tuning | ||
| 01 | Piston | MAHLE 89,21 | 4 | 09/1965 | 08/1973 | 11251251867 | ENDED | Shop at ECS Tuning | ||
| 01 | Piston | MAHLE 89,22 | 4 | 09/1965 | 08/1973 | 11251251868 | $213.16 | Shop at ECS Tuning | ||
| 01 | Piston | MAHLE 89,23 | 4 | 09/1965 | 08/1973 | 11251251869 | ENDED | Shop at ECS Tuning | ||
| 01 | Piston | MAHLE 89,46 | 4 | 09/1965 | 08/1973 | 11251251870 | ENDED | Shop at ECS Tuning | ||
| 01 | Piston | MAHLE 89,47 | 4 | 09/1965 | 08/1973 | 11251251871 | $242.52 | ENDED | Shop at ECS Tuning | |
| 01 | Piston | MAHLE 89,48 | 4 | 09/1965 | 08/1973 | 11251251872 | ENDED | Shop at ECS Tuning | ||
| 01 | Piston | MAHLE 89,04 | 4 | 09/1965 | 08/1973 | 11251251873 | ENDED | Shop at ECS Tuning | ||
| 01 | Piston | MAHLE 89,05 | 4 | 09/1965 | 08/1973 | 11251251874 | ENDED | Shop at ECS Tuning | ||
| 01 | Piston | MAHLE 89,06 | 4 | 09/1965 | 08/1973 | 11251251875 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
