Engine housing for BMW 1500-2000CS 2000 (1968)

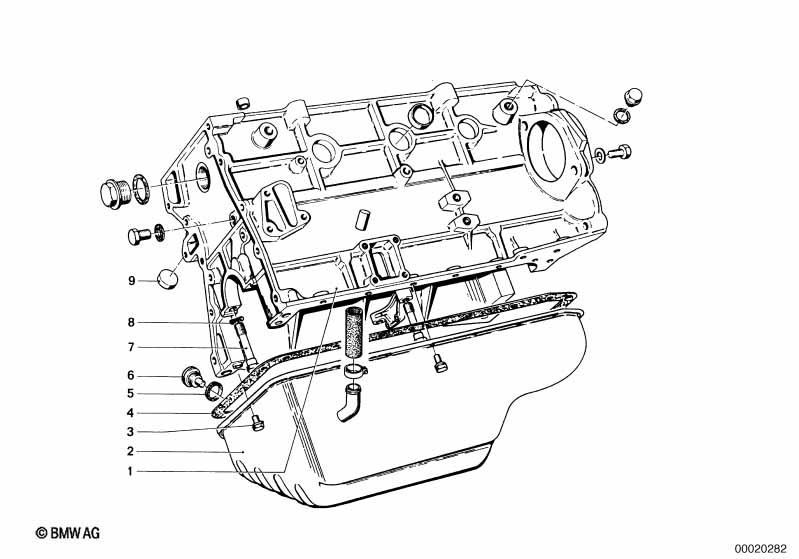

This Engine housing technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Oil Pan | 1 | 11131255164 | $386.66 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M6X16-U1-8.8 | 21 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Gasket Asbestos Free | 1 | 11131727974 | $18.76 | Shop at ECS Tuning | |||||
| according to choice | ||||||||||
| 05 | Gasket ring | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 05 | Gasket ring | A22X27-AL | 1 | 07119963355 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Screw plug | AM12X1,5 | 1 | 07119909703 | Shop at ECS Tuning | |||||
| 06 | Screw plug | M22X1,5 | 1 | 11131250089 | $5.90 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M10X75 | 8 | 11111735525 | $0.93 | Shop at ECS Tuning | ||||
| 08 | Wave washer | B10-ZNS3 | 10 | 07119904463 | Shop at ECS Tuning | |||||
| 09 | Cover lid | D=36MM | 8 | 11111717939 | $2.20 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
