Engine housing for BMW 1500-2000CS 1500 (1964)

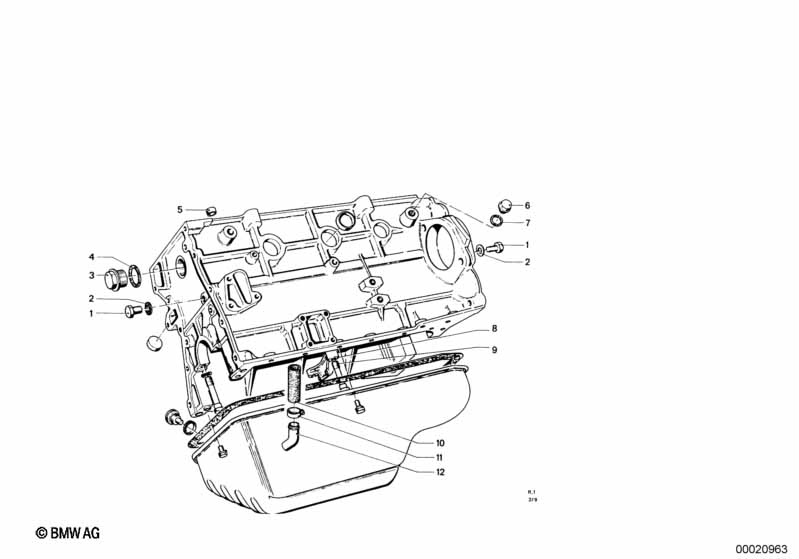

This Engine housing technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1964.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Screw plug | AM12X1,5 | 2 | 07119909703 | Shop at ECS Tuning | |||||
| 02 | Gasket ring | A12X15,5 AL | 2 | 07119963130 | $0.09 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Screw plug | AM12X1,5 | X | 07119919225 | $0.85 | ENDED | Shop at ECS Tuning | |||
| 03 | Screw plug | M30X1,5 | 1 | 07119919039 | $3.11 | Shop at ECS Tuning | ||||
| 04 | Gasket ring | A30X36-AL | 1 | 24111219126 | $0.71 | Shop at ECS Tuning | ||||
| 05 | Dowel | D=14,5MM | 2 | 11111743118 | $1.65 | Shop at ECS Tuning | ||||
| 08 | Holder | 1 | 11410704002 | ENDED | Shop at ECS Tuning | |||||
| 09 | Hex bolt | M10X70 | 2 | 31111136250 | $2.95 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1500 Engine housing?
- This technical diagram illustrates the Engine housing within the Engine group for the 1500-2000CS 1500 produced during 1964. It provides a detailed exploded view of the components, identifying key parts such as the Screw plug (Part #07119909703).
- Which models use the hardware listed in this Engine housing?
- The hardware and components featured in the Engine housing are specific to the 1500-2000CS 1500 produced during 1964. These technical specifications ensure that parts like the Screw plug (07119909703) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine housing assembly?
- Each item in the Engine housing corresponds to the numbered list below the illustration. For the 1500-2000CS 1500, you can identify the Screw plug by locating its position on the schematic, which then links to the official BMW part number 07119909703 for the Engine section.
