Cylinder Head for BMW 1500-2000CS 2000ti (1968)

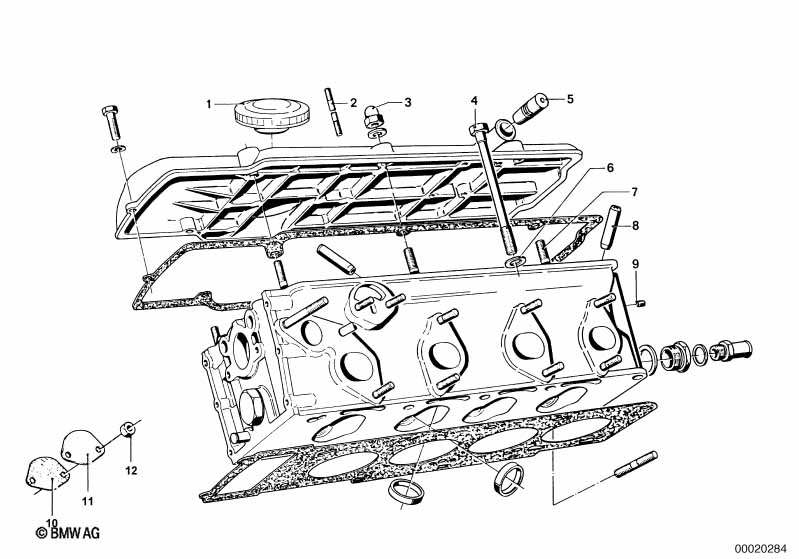

This Cylinder Head technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover lid | 1 | 05/1982 | 11121286220 | ENDED | Shop at ECS Tuning | ||||
| 01 | Cap for oil filler | 1 | 11121716993 | $5.36 | Shop at ECS Tuning | |||||
| 03 | Cap nut | M6 | 6 | 11617549043 | $3.23 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M12X156 | 10 | 11120621144 | $4.57 | Shop at ECS Tuning | ||||
| 05 | Jet | 1 | 02/1962 | 01/1972 | 11121250937 | $0.57 | ENDED | Shop at ECS Tuning | ||
| 06 | Wave washer | B6 | 10 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 07 | Set stud bolt 20 | M6X50 | 6 | 07509063350 | ENDED | Shop at ECS Tuning | ||||
| 08 | Valve Guide | +0,10MM | 8 | 11121266760 | $11.54 | ENDED, SI 110288843 | Shop at ECS Tuning | |||
| 08 | Valve Guide | +0,20MM D=7,9MM | 8 | 11121266761 | $9.94 | ENDED | Shop at ECS Tuning | |||
| 08 | Valve Guide | 14,40MM(+0,2) | 8 | 11121713407 | ENDED | Shop at ECS Tuning | ||||
| 08 | Valve Guide | +0,30MM | 8 | 11121266762 | ENDED, SI 110288843 | Shop at ECS Tuning | ||||
| 08 | Valve Guide | 14,30MM(+0,1) | 8 | 11121713406 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Valve seal ring | D=10,8MM | 8 | 11341273501 | $23.16 | ENDED | Shop at ECS Tuning | |||
| 08 | Valve Guide | 14,30MM(+0,1) | 8 | 11121713406 | ENDED | Shop at ECS Tuning | ||||
| 08 | Valve Guide | 14,40MM(+0,2) | 8 | 11121713407 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Valve seal ring | D=10,8MM | 8 | 11341273501 | $23.16 | ENDED | Shop at ECS Tuning | |||
| 09 | Threaded plug | M6 | 1 | 11121744337 | $1.68 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
