Cylinder head / Cover / Gaskets for BMW 1500-2000CS 1500 (1964)

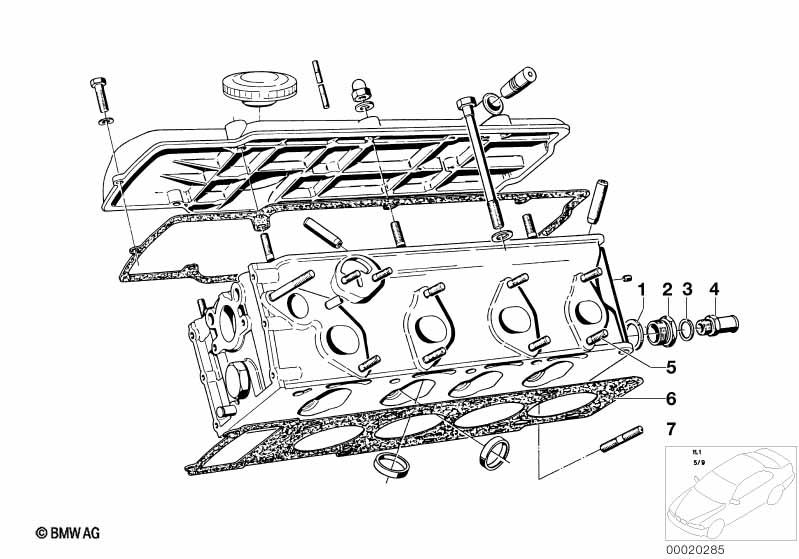

This Cylinder head / Cover / Gaskets technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1964.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gasket ring | A36X42-AL | 1 | 07119963467 | $0.62 | ENDED | Shop at ECS Tuning | |||
| 01 | Gasket ring | A30X36-AL | 1 | 24111219126 | $0.71 | Shop at ECS Tuning | ||||
| 02 | Connector | 1 | 11120621105 | $18.76 | Shop at ECS Tuning | |||||
| 02 | Connector | 1 | 11120721115 | $18.96 | ENDED | Shop at ECS Tuning | ||||
| 02 | Reducer | M22X1,4/M36X1,5 | 1 | 11121250745 | $19.50 | ENDED | Shop at ECS Tuning | |||
| 03 | Gasket ring | A18X22-AL | 1 | 07119963300 | $0.57 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | A22X27-AL | 1 | 07119963355 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Connector | M18X1,5/18MM | 1 | 11120543338 | $20.06 | Shop at ECS Tuning | ||||
| 04 | Connector | M22X1,5/15MM | 1 | 11121251451 | $19.53 | ENDED | Shop at ECS Tuning | |||
| 04 | Connector | M36 | 1 | 11121257516 | $7.12 | Shop at ECS Tuning | ||||
| 05 | Stud bolt | M 8 X 28 | 1 | 07119908366 | $0.39 | ENDED | Shop at ECS Tuning | |||
| 06 | Cylinder Head Gasket Asbestos-Free | 1 | 02/1962 | 12/1968 | 11129065665 | Shop at ECS Tuning | ||||
| 06 | Cylinder Head Gasket Asbestos-Free | 1 | 02/1962 | 12/1968 | 11129065671 | ENDED | Shop at ECS Tuning | |||
| 07 | Stud bolt | M8X28 | 8 | 07119908317 | $0.40 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
