Intake manifold for BMW 1500-2000CS 2000ti

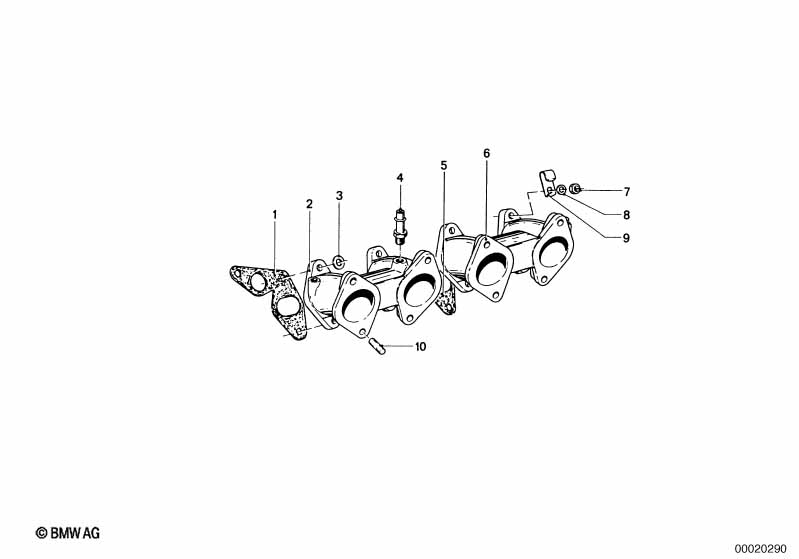

This Intake manifold technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000ti. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gasket Asbestos Free | 1 | 09/1965 | 08/1971 | 11611727995 | $3.80 | Shop at ECS Tuning | |||
| 02 | Intake manifold | 1 | 09/1965 | 08/1971 | 11611250591 | $231.61 | ENDED | Shop at ECS Tuning | ||
| 03 | Washer | 1 | 11610643134 | $0.30 | Shop at ECS Tuning | |||||
| 05 | Gasket Asbestos Free | 3 | 09/1965 | 08/1971 | 11611727994 | $3.80 | Shop at ECS Tuning | |||
| 06 | Intake manifold | 1 | 09/1965 | 08/1971 | 11610743173 | ENDED | Shop at ECS Tuning | |||
| 07 | Hex nut wiht flange | M8 | 8 | 11611713432 | $0.43 | ENDED | Shop at ECS Tuning | |||
| 08 | Washer | 8,4X16X1,6-ZNNV | 7 | 07119907030 | Shop at ECS Tuning | |||||
| 09 | Clamp | 1 | 11610643019 | $1.75 | ENDED | Shop at ECS Tuning | ||||
| 10 | Stud bolt | M8X25 | 8 | 07129903327 | $4.60 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 2000ti Intake manifold?
- This technical diagram illustrates the Intake manifold within the Engine group for the 1500-2000CS 2000ti. It provides a detailed exploded view of the components, identifying key parts such as the Gasket Asbestos Free (Part #11611727995).
- Which models use the hardware listed in this Intake manifold?
- The hardware and components featured in the Intake manifold are specific to the 1500-2000CS 2000ti. These technical specifications ensure that parts like the Gasket Asbestos Free (11611727995) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Intake manifold assembly?
- Each item in the Intake manifold corresponds to the numbered list below the illustration. For the 1500-2000CS 2000ti, you can identify the Gasket Asbestos Free by locating its position on the schematic, which then links to the official BMW part number 11611727995 for the Engine section.
