Engine Suspension for BMW 1500-2000CS 1800ti (1966)

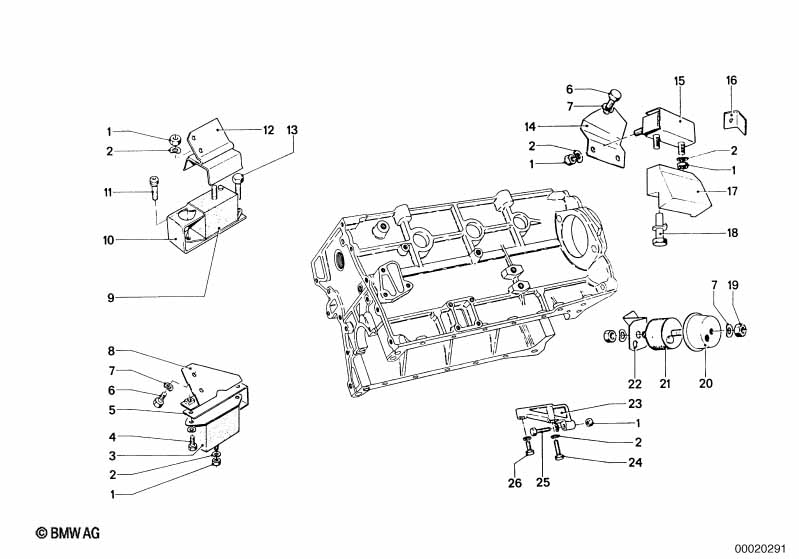

This Engine Suspension technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1966.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex nut | M8-8-ZNS3 | 6 | 01/1972 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 01 | Hex nut | M8-8-ZNNIV SI | 6 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 02 | Wave washer | 8,4X15-ZNS3 | 8 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X18-8.8-ZNS3 | 2 | 02/1962 | 01/1972 | 07119904146 | $0.65 | Shop at ECS Tuning | ||
| 06 | Hex bolt | M10X18-8.8-ZNS3 | 4 | 07119904033 | $0.65 | Shop at ECS Tuning | ||||
| 07 | Wave washer | B10-ZNS3 | 4 | 07119904463 | Shop at ECS Tuning | |||||
| 18 | Nut | 2 | 02/1962 | 02/1970 | 11810696130 | ENDED | Shop at ECS Tuning | |||
| 23 | Support | 1 | 21110670055 | ENDED | Shop at ECS Tuning | |||||
| 24 | Hex bolt | M8X50 | 1 | 02/1962 | 01/1972 | 07119904533 | $2.84 | Shop at ECS Tuning | ||
| 25 | Hex bolt | M8X45-8.8-ZNS3 | 1 | 02/1962 | 01/1972 | 07119902955 | $0.62 | Shop at ECS Tuning | ||
| 26 | Hex bolt | M8X30-ZN | 1 | 02/1962 | 01/1972 | 07119913662 | $0.22 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800ti Engine Suspension?
- This technical diagram illustrates the Engine Suspension within the Engine group for the 1500-2000CS 1800ti produced during 1966. It provides a detailed exploded view of the components, identifying key parts such as the Hex nut (Part #07119904032).
- Which models use the hardware listed in this Engine Suspension?
- The hardware and components featured in the Engine Suspension are specific to the 1500-2000CS 1800ti produced during 1966. These technical specifications ensure that parts like the Hex nut (07119904032) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine Suspension assembly?
- Each item in the Engine Suspension corresponds to the numbered list below the illustration. For the 1500-2000CS 1800ti, you can identify the Hex nut by locating its position on the schematic, which then links to the official BMW part number 07119904032 for the Engine section.
