Intake manifold for BMW 1500-2000CS 2000

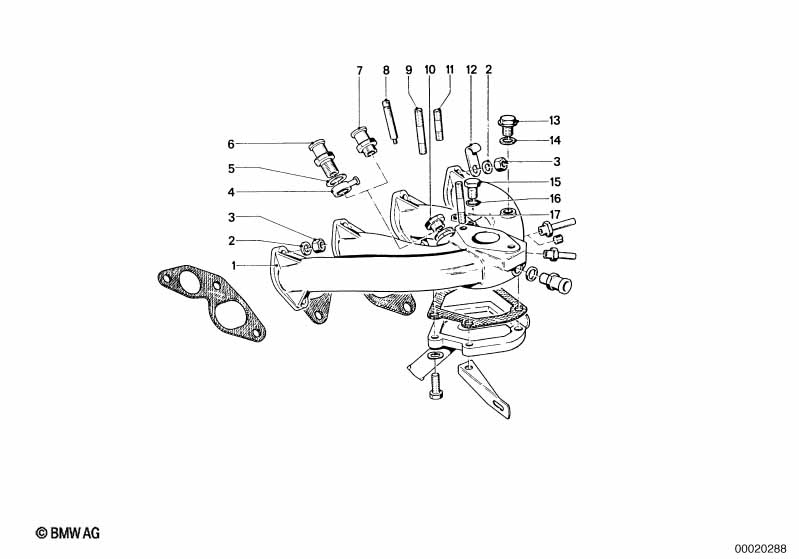

This Intake manifold technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake manifold | 1 | 01/1966 | 01/1972 | 11611251521 | $181.91 | ENDED | Shop at ECS Tuning | ||
| 02 | Washer | 8,4X16X1,6-ZNNV | 7 | 07119907030 | Shop at ECS Tuning | |||||
| 02 | Washer | 1 | 11610643134 | $0.30 | Shop at ECS Tuning | |||||
| 03 | Hex nut wiht flange | M8 | 8 | 11611713432 | $0.43 | ENDED | Shop at ECS Tuning | |||
| 04 | Connector | 1 | 02/1966 | 08/1971 | 11611250704 | ENDED | Shop at ECS Tuning | |||
| 05 | Gasket ring | A18X22-AL | 1 | 07119963300 | $0.57 | Shop at ECS Tuning | ||||
| 06 | Hollow bolt | 1 | 02/1966 | 08/1971 | 11530788123 | ENDED | Shop at ECS Tuning | |||
| 07 | Connector | M18X1,5/18MM | 1 | 09/1963 | 11/1968 | 11120543338 | $20.06 | Shop at ECS Tuning | ||
| 08 | Pin | 1 | 02/1966 | 08/1971 | 11611256719 | ENDED | Shop at ECS Tuning | |||
| 09 | Stud bolt | M6X18 | 1 | 02/1965 | 08/1971 | 07119908244 | ENDED | Shop at ECS Tuning | ||
| 09 | Stud bolt | M 6 X 28 | 1 | 02/1965 | 08/1971 | 07119908257 | ENDED | Shop at ECS Tuning | ||
| 10 | Screw plug | AM18X1,5 | 1 | 07/1968 | 01/1972 | 07119919246 | $2.40 | ENDED | Shop at ECS Tuning | |
| 11 | Stud bolt | M6X25-ZN | 2 | 02/1965 | 08/1971 | 07129908100 | $0.20 | Shop at ECS Tuning | ||
| 12 | Clamp | 1 | 11610643018 | ENDED | Shop at ECS Tuning | |||||
| 15 | Hex bolt | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 16 | Gasket ring | A6.5X9.5-CU | 2 | 07119963034 | $0.70 | Shop at ECS Tuning | ||||
| according to choice | ||||||||||
| 17 | Stud bolt | M 8 X 45 | 2 | 07119908333 | ENDED | Shop at ECS Tuning | ||||
| 17 | Stud bolt | M8X45 | 2 | 07119908334 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
