Short engine for BMW 2500-3.3Li 3.0S (1973)

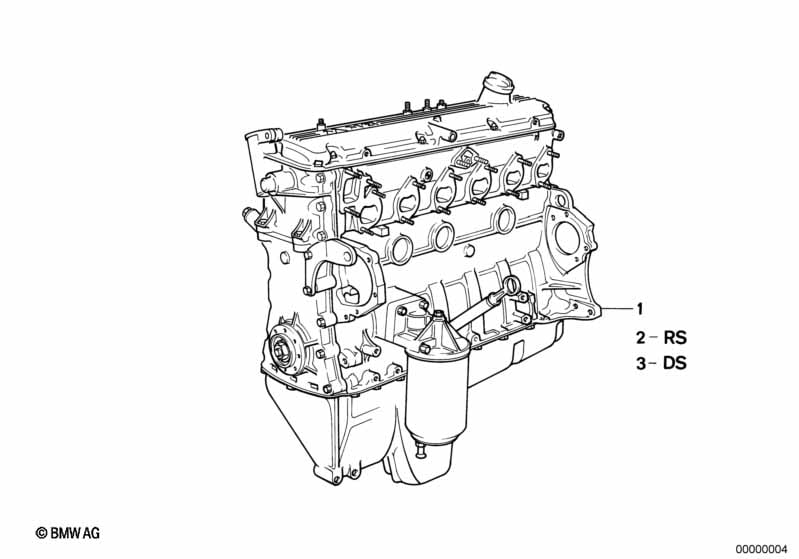

This Short engine technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version sweden |
=Yes |
|||||||||
| 01 | Exch. short engine | 30 A | 1 | 04/1971 | 02/1977 | 11001263291 | $4982.94 | ENDED | Shop at ECS Tuning | |
| 02 | Gasket set service | 1 | 11001256616 | ENDED | Shop at ECS Tuning | |||||
| 02 | Seal and gasket set, engine | 1 | 04/1971 | 02/1977 | 11001255965 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0S Short engine?
- This technical diagram illustrates the Short engine within the Engine group for the 2500-3.3Li 3.0S produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Exch. short engine (Part #11001263291).
- Which models use the hardware listed in this Short engine?
- The hardware and components featured in the Short engine are specific to the 2500-3.3Li 3.0S produced during 1973. These technical specifications ensure that parts like the Exch. short engine (11001263291) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Short engine assembly?
- Each item in the Short engine corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0S, you can identify the Exch. short engine by locating its position on the schematic, which then links to the official BMW part number 11001263291 for the Engine section.
