Cylinder head cover/Mounting parts for BMW 2500-3.3Li 2800 (1971)
This Cylinder head cover/Mounting parts technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder Head | 1 | 11121250017 | $2430.33 | ENDED | Shop at ECS Tuning | ||||
| 02 | Dowel | D=8,5X9MM | 2 | 11121726242 | $1.07 | Shop at ECS Tuning | ||||
| 03 | Screw plug | M30X1,5 | 1 | 07119919039 | $3.11 | Shop at ECS Tuning | ||||
| 04 | Gasket ring | A30X36-AL | 1 | 24111219126 | $0.71 | Shop at ECS Tuning | ||||
| 05 | Set stud bolt 20 | M6X50 | 8 | 07509063350 | ENDED | Shop at ECS Tuning | ||||
| 06 | Gasket Asbestos Free | 1 | 11121730936 | ENDED | Shop at ECS Tuning | |||||
| 07 | Cylinder head cover | 1 | 11121276593 | $188.46 | ENDED | Shop at ECS Tuning | ||||
| 08 | Wave washer | B6 | 17 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 09 | Cover lid | 1 | 05/1982 | 11121286220 | ENDED | Shop at ECS Tuning | ||||
| 09 | Cap for oil filler | 1 | 11121716993 | $5.36 | Shop at ECS Tuning | |||||
| 10 | Stud bolt | M6X25-ZN | 2 | 07129908100 | $0.20 | Shop at ECS Tuning | ||||
| 11 | Clamp | 1 | 11530623124 | $0.21 | ENDED | Shop at ECS Tuning | ||||
| 12 | Cap nut | M6 | 8 | 11617549043 | $3.23 | Shop at ECS Tuning | ||||
| 13 | Gasket ring | A22X27-AL | 1 | 07119963355 | $0.36 | Shop at ECS Tuning | ||||
| 14 | Screw plug | M22X1,5 | 1 | 11121257379 | $2.70 | Shop at ECS Tuning | ||||
| 14 | Screw Plug With Gasket Ring | M22X1,5 | 1 | 11117558632 | Shop at ECS Tuning | |||||
| 15 | Hex bolt | M12X156 | 14 | 11120621144 | $4.57 | Shop at ECS Tuning | ||||
| 16 | Valve Guide | 14,30MM(+0,1) | 12 | 11121713406 | ENDED | Shop at ECS Tuning | ||||
| 16 | Valve Guide | 14,40MM(+0,2) | 12 | 11121713407 | ENDED | Shop at ECS Tuning | ||||
| 17 | Washer | 14 | 11120621145 | $0.65 | Shop at ECS Tuning | |||||
| 18 | Gasket Asbestos Free | 1 | 11121726725 | $3.56 | Shop at ECS Tuning | |||||
| 19 | Cover | 1 | 11121254308 | $6.38 | Shop at ECS Tuning | |||||
| 20 | Hex bolt | M6X16-8.8-ZNS3 | 6 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 20 | Hex bolt | M6X20-8.8-ZNS | 6 | 08/1968 | 02/1977 | 07119913016 | $0.60 | ENDED | Shop at ECS Tuning | |
| 21 | Washer-gasket | ZÜNDVERTEILER | 1 | 12110002735 | $1.71 | ENDED | Shop at ECS Tuning | |||
| 22 | Cover | 1 | 08/1968 | 02/1977 | 11121250075 | $63.14 | ENDED | Shop at ECS Tuning | ||
| 22 | Cover | 1 | 07/1969 | 02/1977 | 11121253208 | $42.41 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2800 Cylinder head cover/Mounting parts?

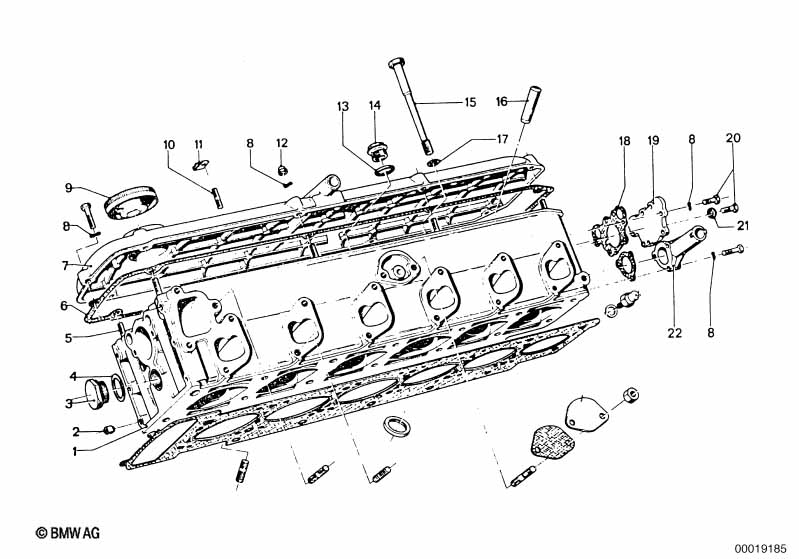

- This technical diagram illustrates the Cylinder head cover/Mounting parts within the Engine group for the 2500-3.3Li 2800 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Cylinder Head (Part #11121250017).
- Which models use the hardware listed in this Cylinder head cover/Mounting parts?
- The hardware and components featured in the Cylinder head cover/Mounting parts are specific to the 2500-3.3Li 2800 produced during 1971. These technical specifications ensure that parts like the Cylinder Head (11121250017) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cylinder head cover/Mounting parts assembly?
- Each item in the Cylinder head cover/Mounting parts corresponds to the numbered list below the illustration. For the 2500-3.3Li 2800, you can identify the Cylinder Head by locating its position on the schematic, which then links to the official BMW part number 11121250017 for the Engine section.
