Cylinder head cover/Mounting parts for BMW 2500-3.3Li 2500 (1971)

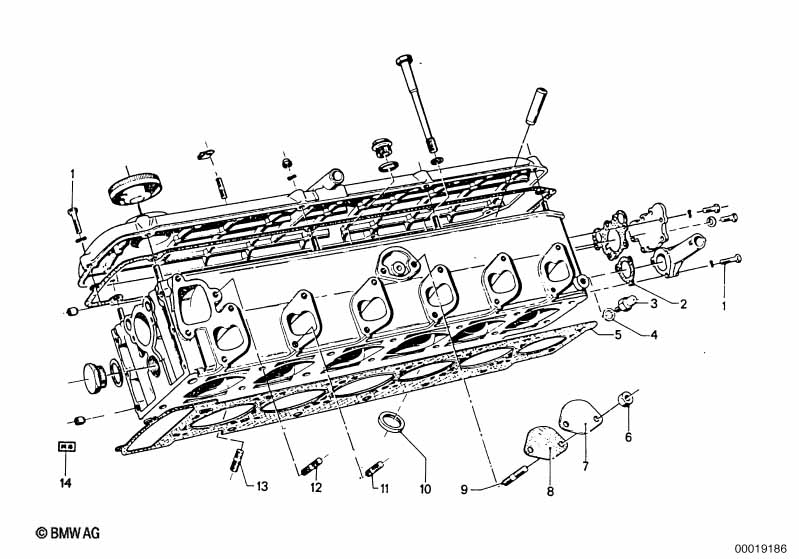

This Cylinder head cover/Mounting parts technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex bolt | M6X30-8.8-ZNS3 | 4 | 07119904116 | $0.38 | Shop at ECS Tuning | ||||
| 02 | Gasket Asbestos Free | 1 | 11151312176 | $2.35 | Shop at ECS Tuning | |||||
| 03 | Oil pressure switch | 1 | 61311352619 | ENDED | Shop at ECS Tuning | |||||
| 04 | Gasket ring | A12X15,5 AL | 1 | 07119963130 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Cylinder Head Gasket Asbestos-Free | 1 | 08/1968 | 02/1977 | 11121730745 | Shop at ECS Tuning | ||||
| 05 | Cylinder Head Gasket Asbestos-Free | 2,07MM(+0,3) | 1 | 11121730748 | $167.30 | Shop at ECS Tuning | ||||
| 09 | Set stud bolt 10 | M8X55 | 2 | 08/1968 | 02/1977 | 07509063347 | ENDED | Shop at ECS Tuning | ||
| 10 | Valve Seat Ring Intake | +0,20MM | 6 | 11121254253 | $7.33 | Shop at ECS Tuning | ||||
| 10 | Valve Seat Ring Intake | +0,40MM | 6 | 11121254254 | $7.33 | ENDED | Shop at ECS Tuning | |||
| 10 | Valve Seat Ring Exhaust | +0,40MM | 6 | 11121264035 | $7.48 | ENDED | Shop at ECS Tuning | |||
| 10 | Valve Seat Ring Exhaust | 6 | 11121271561 | ENDED | Shop at ECS Tuning | |||||
| 11 | Stud bolt | M8X28 | 12 | 07119908317 | $0.40 | Shop at ECS Tuning | ||||
| 12 | Stud bolt | M8X48 | 3 | 11121250026 | $0.84 | Shop at ECS Tuning | ||||
| 13 | Stud bolt | M 8 X 28 | 12 | 07119908366 | $0.39 | ENDED | Shop at ECS Tuning | |||
| 14 | Gasket Set Cylinder Head Asbestos Free | 1 | 08/1968 | 02/1977 | 11129065716 | $297.10 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
