Wheel casing for BMW 2500-3.3Li 3.3L (1975)

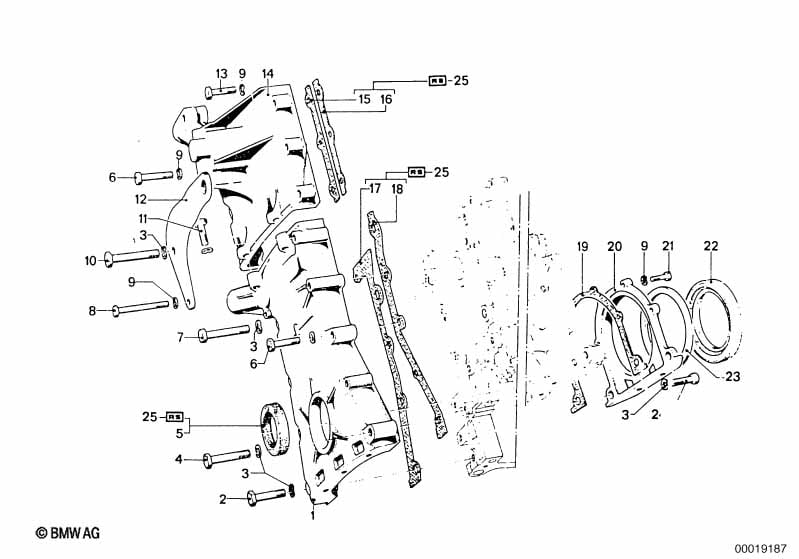

This Wheel casing technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Timing case cover, bottom | 1 | 08/1968 | 02/1977 | 11141718860 | $211.52 | ENDED | Shop at ECS Tuning | ||
| 02 | Hex bolt | M8X45-8.8-ZNS3 | 1 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 03 | Wave washer | 8,4X15-ZNS3 | 6 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X55-8.8 | 1 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 05 | Shaft seal | 42X62X12 | 1 | 11141715099 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M6X35-8.8-ZNS3 | 9 | 07119902998 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M8X40-ZNNIV SI | 1 | 07119905549 | $1.05 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M6X65 | 1 | 07119912357 | $0.71 | ENDED | Shop at ECS Tuning | |||
| 09 | Wave washer | B6 | 18 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 10 | Hexagon bolt | M8X65 | 1 | 02/2000 | 07119903018 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M8X65 | 1 | 41117006311 | $6.28 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M6X25 | 2 | 07119913483 | $0.36 | Shop at ECS Tuning | ||||
| 12 | Shackle | 1 | 11141250101 | $10.56 | ENDED | Shop at ECS Tuning | ||||
| 13 | Hex bolt | M6X40 | 2 | 07119912310 | $0.43 | Shop at ECS Tuning | ||||
| 14 | Cover | 1 | 11141278705 | $269.94 | Shop at ECS Tuning | |||||
| 15 | Gasket left asbesto-free | 1 | 11141726729 | $1.71 | Shop at ECS Tuning | |||||
| 16 | Gasket right asbesto-free | 1 | 11141726727 | $1.71 | Shop at ECS Tuning | |||||
| 17 | Gasket left asbesto-free | 1 | 11141726731 | $3.73 | Shop at ECS Tuning | |||||
| 18 | Gasket right asbesto-free | 1 | 11141726733 | $2.65 | Shop at ECS Tuning | |||||
| 19 | Gasket Asbestos Free | 1 | 11141250073 | $1.75 | Shop at ECS Tuning | |||||
| 20 | Cover | 1 | 11141250032 | $76.03 | ENDED | Shop at ECS Tuning | ||||
| 21 | Hex bolt | M6X20-8.8-ZNS | 4 | 07119913016 | $0.60 | ENDED | Shop at ECS Tuning | |||
| 22 | Shaft seal | 90X110X12 | 1 | 11142249533 | $58.96 | Shop at ECS Tuning | ||||
| 23 | Shim | 100X110X1,5 | 1 | 11141252897 | $11.84 | ENDED | Shop at ECS Tuning | |||
| 24 | Hex bolt | M8X25-8.8-ZNNIV | 2 | 07119906181 | $0.55 | Shop at ECS Tuning | ||||
| 25 | Asbestos-free gasket set cover | 1 | 11141735047 | $38.13 | Shop at ECS Tuning |
