Camshaft Camshaft for BMW 2.5CS-3.0CSL 3.0CSL (1973)

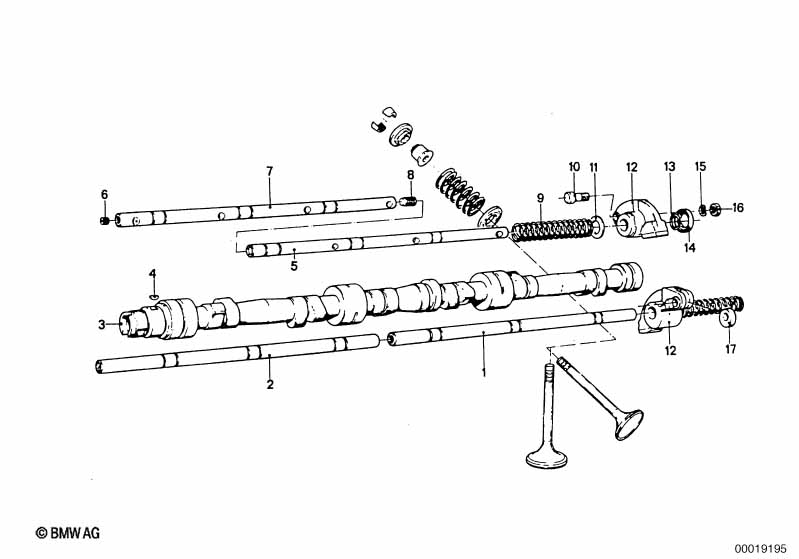

This Camshaft Camshaft technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rocker arm shaft intake rear | 1 | 11331274929 | $81.32 | Shop at ECS Tuning | |||||
| 02 | Rocker arm shaft intake front | 1 | 11331274963 | $81.32 | Shop at ECS Tuning | |||||
| 03 | Camshaft Camshaft | 272DEG(B) | 1 | 12/1968 | 02/1977 | 11311254979 | $571.14 | Shop at ECS Tuning | ||
| 03 | Camshaft sports version | 1 | 12/1968 | 02/1977 | 11311255984 | $658.44 | ENDED | Shop at ECS Tuning | ||
| 03 | Camshaft Camshaft | 1 | 12/1968 | 02/1977 | 11311255985 | ENDED | Shop at ECS Tuning | |||
| 04 | Set woodruff key 25 | 4X5 | 1 | 07509064297 | ENDED | Shop at ECS Tuning | ||||
| 05 | Rocker arm shaft exhaust rear | 1 | 11331274947 | $81.32 | +core | Shop at ECS Tuning | ||||
| 06 | Screw plug | M12X1 | 4 | 11331274923 | $1.62 | Shop at ECS Tuning | ||||
| 07 | Rocker arm shaft exhaust front | 1 | 11331274959 | $81.32 | Shop at ECS Tuning | |||||
| 08 | Plug | 4 | 11331266400 | $5.48 | Shop at ECS Tuning | |||||
| 09 | Compression spring | 12 | 11330634125 | $1.07 | Shop at ECS Tuning | |||||
| 10 | Washer | 12 | 11330634140 | $1.85 | Shop at ECS Tuning | |||||
| 11 | Screw | 12 | 11331744355 | $2.03 | Shop at ECS Tuning | |||||
| 12 | Rocker arm | 12 | 11331271833 | $55.08 | Shop at ECS Tuning | |||||
| 13 | Spring washer | 12 | 11330634135 | $0.30 | Shop at ECS Tuning | |||||
| 14 | Interm.ring | 12 | 11331744353 | Shop at ECS Tuning | ||||||
| 15 | Wave washer | B6 | 12 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 16 | Hex nut | M6 | 12 | 11331744333 | $0.28 | Shop at ECS Tuning | ||||
| 17 | Eccentric | 12 | 11331744354 | $4.92 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
