Valve for BMW 2500-3.3Li 3.0S (1973)

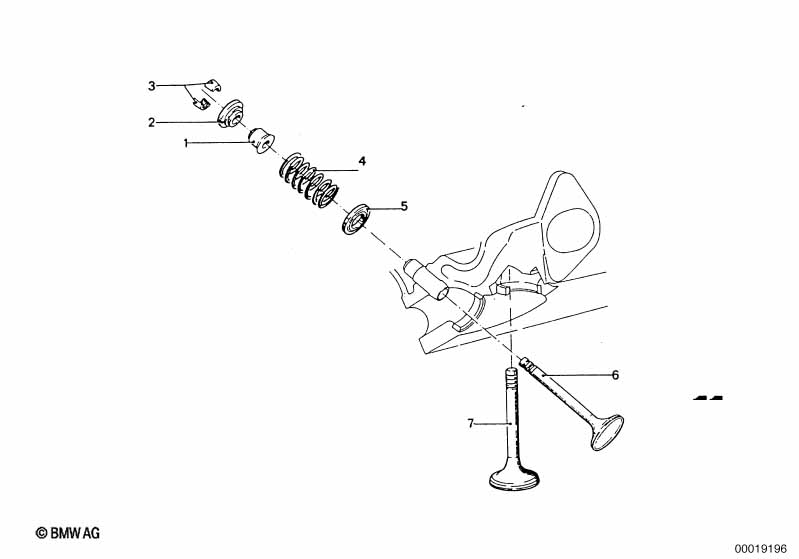

This Valve technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Valve seal ring | D=13,9MM | 12 | 11341261269 | Shop at ECS Tuning | |||||
| 02 | Spring pocket | 12 | 11341252899 | Shop at ECS Tuning | ||||||
| 03 | Valve collet | 24 | 11341744325 | $1.34 | Shop at ECS Tuning | |||||
| 04 | Valve spring | L=44,8/D=32,1MM | 12 | 11341276504 | Shop at ECS Tuning | |||||
| 05 | Spring pocket | 12 | 11340626116 | $3.45 | ENDED | Shop at ECS Tuning | ||||
| 06 | Intake valve | 46,0/8,00MM | 6 | 11341257592 | $45.08 | Shop at ECS Tuning | ||||
| 07 | Exhaust valve | 38,0/8,00MM | 6 | 11341250129 | $98.18 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0S Valve?
- This technical diagram illustrates the Valve within the Engine group for the 2500-3.3Li 3.0S produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Valve seal ring (Part #11341261269).
- Which models use the hardware listed in this Valve?
- The hardware and components featured in the Valve are specific to the 2500-3.3Li 3.0S produced during 1973. These technical specifications ensure that parts like the Valve seal ring (11341261269) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Valve assembly?
- Each item in the Valve corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0S, you can identify the Valve seal ring by locating its position on the schematic, which then links to the official BMW part number 11341261269 for the Engine section.
