Emission control for BMW 2500-3.3Li 2800 (1973)

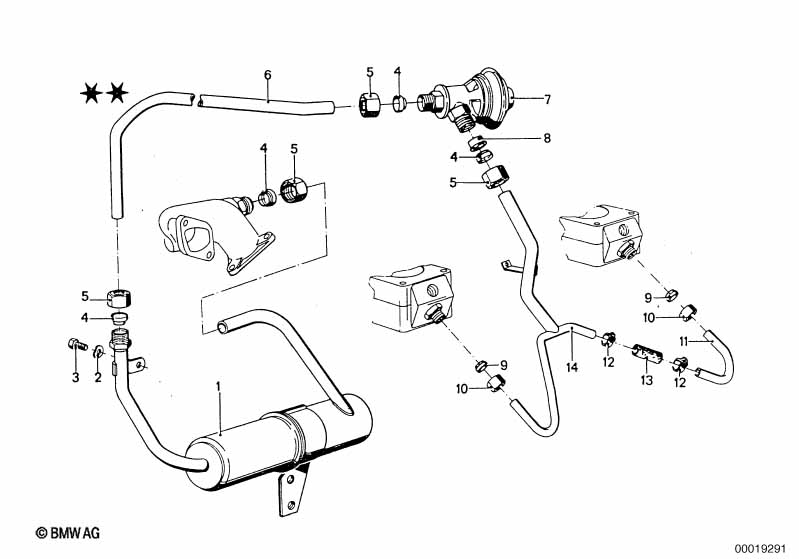

This Emission control technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust gas filter | 1 | 08/1968 | 02/1977 | 11711263599 | $185.26 | ENDED | Shop at ECS Tuning | ||
| 02 | Wave washer | B6 | 1 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 03 | Hex bolt | M6X10-8.8-ZNS3 | 1 | 07119904633 | $0.20 | Shop at ECS Tuning | ||||
| 04 | Slip ring | 4 | 11711257699 | $3.85 | Shop at ECS Tuning | |||||
| 05 | Cap nut | 4 | 11711257669 | $1.95 | ENDED | Shop at ECS Tuning | ||||
| 06 | Pipe | 1 | 11711259157 | $34.88 | ENDED | Shop at ECS Tuning | ||||
| 07 | EGR-valve | 1 | 04/1969 | 02/1977 | 11711263541 | $976.50 | ENDED | Shop at ECS Tuning | ||
| 09 | Slip ring | L10 | 2 | 07119970115 | ENDED | Shop at ECS Tuning | ||||
| 10 | Cap nut | AL10 | 2 | 07119970263 | ENDED | Shop at ECS Tuning | ||||
| 11 | Pipe | 1 | 08/1968 | 02/1977 | 11711261594 | ENDED | Shop at ECS Tuning | |||
| 12 | Hose clamp | L15-19 | 2 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 13 | Hose | X | 11711261600 | $19.20 | ENDED | Shop at ECS Tuning | ||||
| 14 | Pipe | 1 | 11711260029 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
