Exhaust manifold for BMW 2.5CS-3.0CSL 3.0CS (1973)

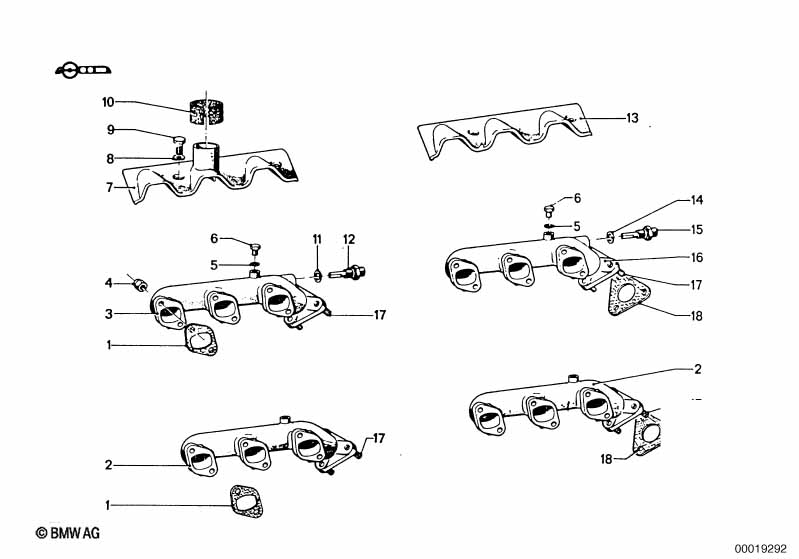

This Exhaust manifold technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gasket Asbestos Free | 6 | 11621723851 | $5.70 | Shop at ECS Tuning | |||||
| 02 | Exhaust manifold | 1 | 11621250601 | $260.38 | Shop at ECS Tuning | |||||

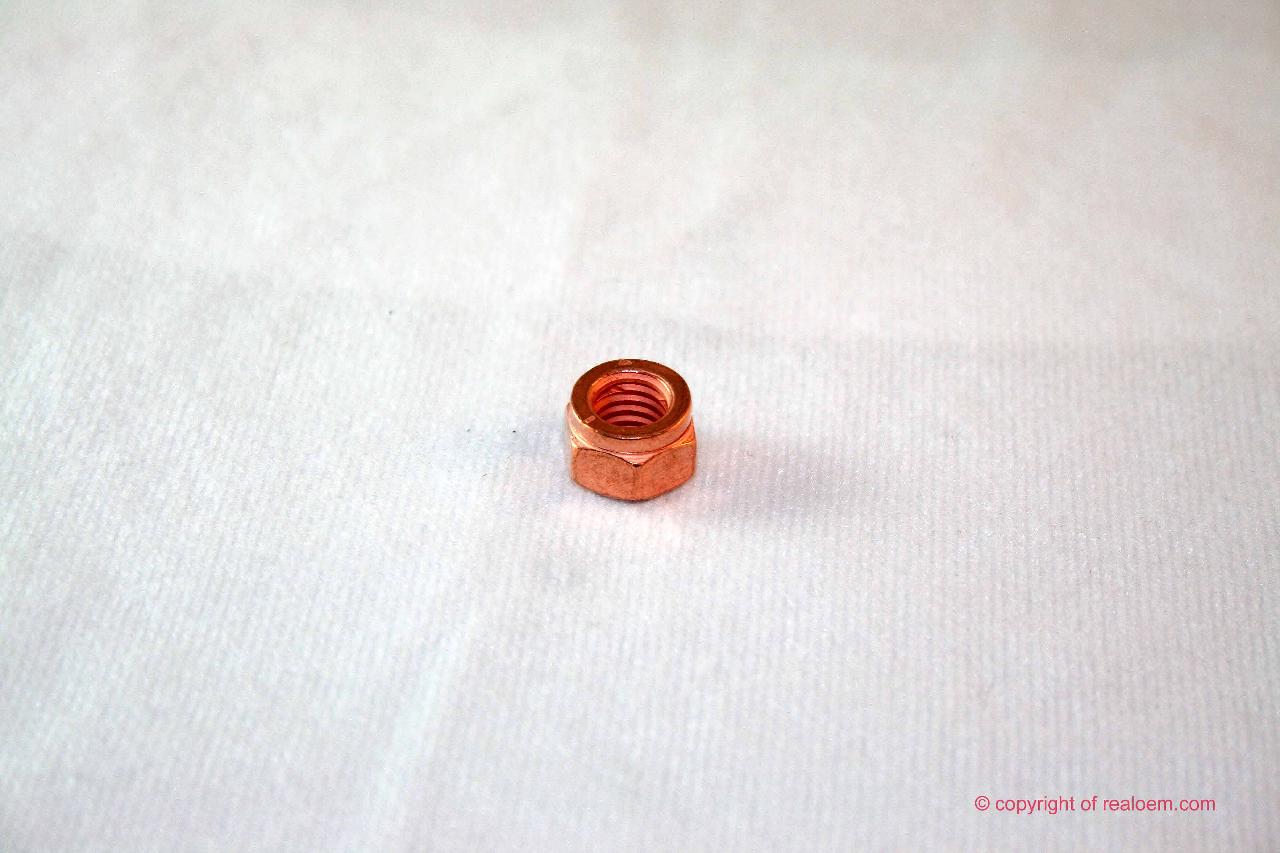

| 04 | Hex nut | M8 SW12 | 12 | 11621744323 | $0.85 | Shop at ECS Tuning | ||||
| 05 | Gasket ring | A8X11,5-AL | 2 | 07119963041 | $0.57 | Shop at ECS Tuning | ||||
| 06 | Screw plug | CM8X1 | 2 | 07119919210 | $2.24 | Shop at ECS Tuning | ||||
| 07 | Heat shield | 1 | 12/1968 | 11/1975 | 11621256575 | $36.06 | Shop at ECS Tuning | |||
| 08 | Wave washer | B6 | 4 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 09 | Hex bolt | M6X10-8.8-ZNS3 | 4 | 07119904633 | $0.20 | Shop at ECS Tuning | ||||
| 10 | Intermediate ring | 1 | 12/1968 | 11/1975 | 11621257994 | ENDED | Shop at ECS Tuning | |||
| 11 | Gasket ring | A14X18-AL | 1 | 04/1971 | 12/1974 | 07119963200 | $0.38 | Shop at ECS Tuning | ||
| 13 | Covering plate | 1 | 12/1968 | 11/1975 | 11621257097 | $27.49 | Shop at ECS Tuning | |||
| 17 | Stud bolt | M10X25 | 6 | 07119909117 | $1.52 | Shop at ECS Tuning | ||||
| 18 | Gasket Asbestos Free | 2 | 18111723843 | $10.83 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
