Engine Suspension for BMW 2500-3.3Li 3.0Si (1977)

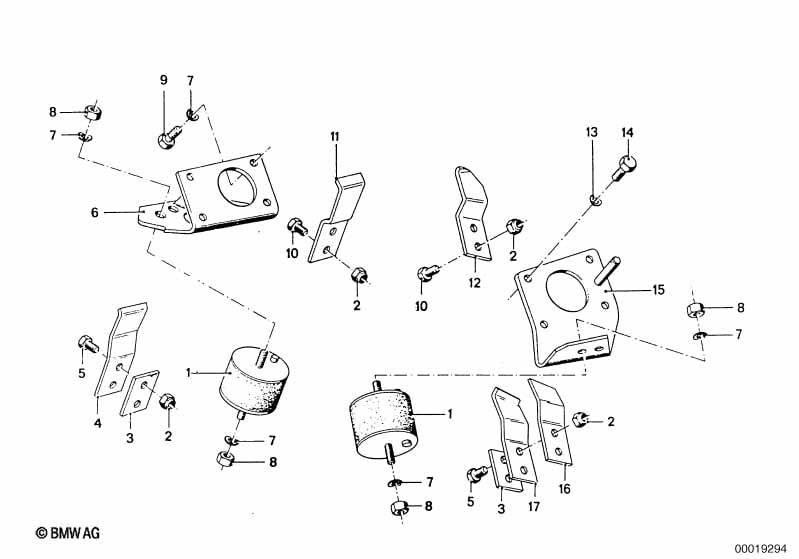

This Engine Suspension technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 06 | Supporting bracket right | 1 | 11811103773 | $36.05 | Shop at ECS Tuning | |||||
| 07 | Wave washer | B10-ZNS3 | 8 | 07119904463 | Shop at ECS Tuning | |||||
| 08 | Hex nut | M10-8-ZNS | 4 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M10X18-8.8-ZNS3 | 4 | 07119904033 | $0.65 | Shop at ECS Tuning | ||||
| 13 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 14 | Hex bolt | M8X22-8.8-ZNS3 | 4 | 07119904040 | Shop at ECS Tuning | |||||
| 15 | Supporting bracket left | 1 | 11811105693 | $58.39 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0Si Engine Suspension?
- This technical diagram illustrates the Engine Suspension within the Engine group for the 2500-3.3Li 3.0Si produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Supporting bracket right (Part #11811103773).
- Which models use the hardware listed in this Engine Suspension?
- The hardware and components featured in the Engine Suspension are specific to the 2500-3.3Li 3.0Si produced during 1977. These technical specifications ensure that parts like the Supporting bracket right (11811103773) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine Suspension assembly?
- Each item in the Engine Suspension corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0Si, you can identify the Supporting bracket right by locating its position on the schematic, which then links to the official BMW part number 11811103773 for the Engine section.
