Piston for BMW 2500-3.3Li 3.0S (1974)

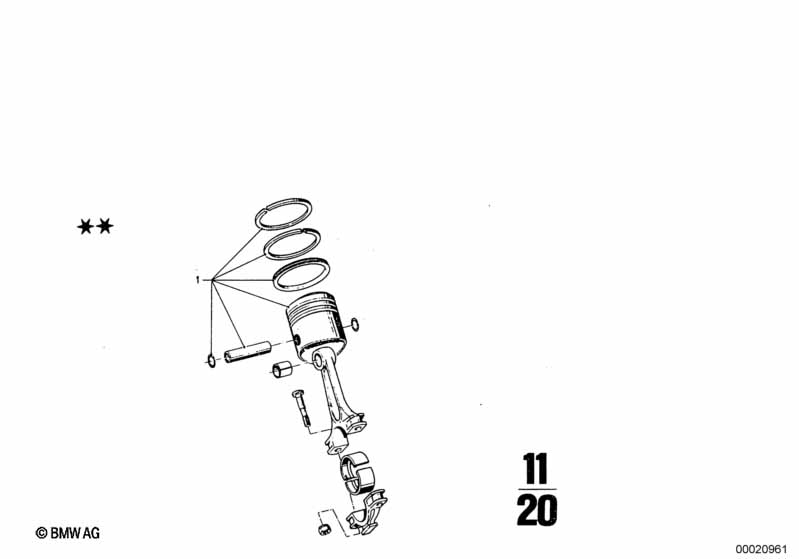

This Piston technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Mahle piston | 88,97MM("0") | 6 | 07/1971 | 07/1976 | 11251261943 | $174.73 | ENDED | Shop at ECS Tuning | |
| 01 | Mahle piston | 89,05MM("00") | 6 | 07/1971 | 07/1976 | 11251261944 | ENDED | Shop at ECS Tuning | ||
| 01 | Mahle piston | 89,22MM(+0,25) | 6 | 07/1971 | 07/1976 | 11251261945 | $170.75 | ENDED | Shop at ECS Tuning | |
| 01 | Mahle piston | 89,47MM(+0,50) | 6 | 07/1971 | 07/1976 | 11251261946 | $220.17 | ENDED | Shop at ECS Tuning | |
| 01 | Piston | 89,05MM("00") | 6 | 07/1971 | 07/1976 | 11251261949 | ENDED | Shop at ECS Tuning | ||
| 01 | Piston | 89,22MM(+0,25) | 6 | 07/1971 | 07/1976 | 11251261950 | $170.75 | ENDED | Shop at ECS Tuning | |
| 01 | Piston | 89,47MM(+0,50) | 6 | 07/1971 | 07/1976 | 11251261951 | $170.75 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0S Piston?
- This technical diagram illustrates the Piston within the Engine group for the 2500-3.3Li 3.0S produced during 1974. It provides a detailed exploded view of the components, identifying key parts such as the Mahle piston (Part #11251261943).
- Which models use the hardware listed in this Piston?
- The hardware and components featured in the Piston are specific to the 2500-3.3Li 3.0S produced during 1974. These technical specifications ensure that parts like the Mahle piston (11251261943) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Piston assembly?
- Each item in the Piston corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0S, you can identify the Mahle piston by locating its position on the schematic, which then links to the official BMW part number 11251261943 for the Engine section.
