Exhaust manifold-AGR for BMW 3 Series E30 318i (1987)

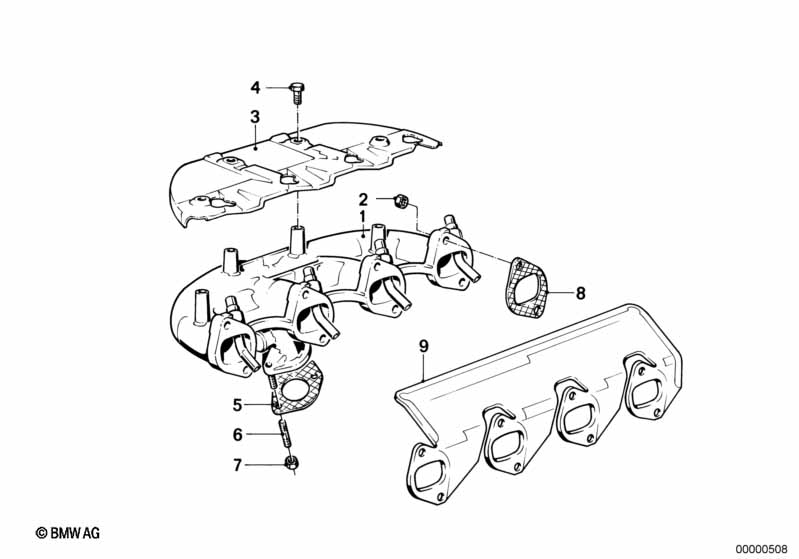

This Exhaust manifold-AGR technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version Switzerland or National version Australia or National version sweden |
L804A=Yes L810A=Yes V010A=Yes |
|||||||||
| 01 | Exhaust manifold | 1 | 11751277951 | $205.34 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex nut wiht flange | M8 | 8 | 18307620549 | Shop at ECS Tuning | |||||
| 05 | Gasket Asbestos Free | 1 | 18111728363 | $17.87 | Shop at ECS Tuning | |||||
| 06 | Stud bolt | M10X35 | 3 | 11621711671 | $3.05 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M10 | 3 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 09 | Gasket w/heat prot.shield asbestosfree | 1 | 02/1983 | 11621723833 | $18.62 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 318i Exhaust manifold-AGR?
- This technical diagram illustrates the Exhaust manifold-AGR within the Engine group for the 3 Series E30 318i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Exhaust manifold (Part #11751277951).
- Which models use the hardware listed in this Exhaust manifold-AGR?
- The hardware and components featured in the Exhaust manifold-AGR are specific to the 3 Series E30 318i produced during 1987. These technical specifications ensure that parts like the Exhaust manifold (11751277951) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exhaust manifold-AGR assembly?
- Each item in the Exhaust manifold-AGR corresponds to the numbered list below the illustration. For the 3 Series E30 318i, you can identify the Exhaust manifold by locating its position on the schematic, which then links to the official BMW part number 11751277951 for the Engine section.
