Water pump for BMW 2500-3.3Li 2800 (1971)

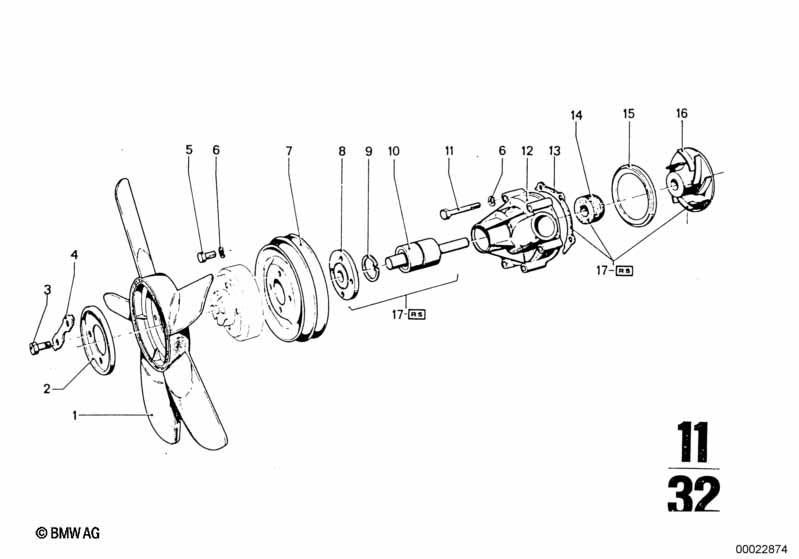

This Water pump technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Late version | ||||||||||
| 01 | Fan | D=400MM | 1 | 08/1968 | 02/1977 | 11521252660 | $54.30 | ENDED | Shop at ECS Tuning | |
| 02 | Reinforcement | 1 | 11531251824 | $2.00 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M6X25 | 4 | 08/1968 | 02/1977 | 07119913483 | $0.36 | Shop at ECS Tuning | ||
| 04 | Securing plate | 2 | 08/1968 | 02/1977 | 11531251825 | $0.83 | Shop at ECS Tuning | |||
| 05 | Hex bolt | M6X12-8.8-ZNNIV | 4 | 08/1968 | 02/1977 | 07119905524 | $0.27 | Shop at ECS Tuning | ||
| 06 | Wave washer | B6 | 10 | 08/1968 | 02/1977 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |
| only in conjunction with | ||||||||||
| -- | Vibration damper | X | 08/1968 | 02/1977 | 11231255308 | ENDED | Shop at ECS Tuning | |||
| -- | Fan belt | 12,5X1025LA | X | 08/1968 | 02/1977 | 07119990174 | ENDED | Shop at ECS Tuning | ||
| 07 | Pulley | 1 | 08/1968 | 02/1977 | 11511251235 | $53.57 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Vibration damper | X | 08/1968 | 02/1977 | 11231255308 | ENDED | Shop at ECS Tuning | |||
| -- | Fan belt | 12,5X1025LA | X | 08/1968 | 02/1977 | 07119990174 | ENDED | Shop at ECS Tuning | ||
| 07 | Pulley | 1 | 08/1968 | 02/1977 | 11511255356 | $342.97 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Vibration damper | X | 08/1968 | 02/1977 | 11231263878 | ENDED | Shop at ECS Tuning | |||
| -- | Fan belt | 12,5X1055 | X | 08/1968 | 02/1977 | 11231711090 | $11.16 | Shop at ECS Tuning | ||
| 08 | Hub | 1 | 11511251823 | ENDED | Shop at ECS Tuning | |||||
| 09 | Lock Ring | 30X1,2 | 1 | 07119934645 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Water pump bearing | 1 | 11511706729 | ENDED | Shop at ECS Tuning | |||||
| 11 | Hex bolt | M6X40 | 6 | 07119912310 | $0.43 | Shop at ECS Tuning | ||||
| 12 | Waterpump housing | 1 | 11511251231 | ENDED | Shop at ECS Tuning | |||||
| 13 | Gasket Asbestos Free | 1 | 11511250345 | $1.28 | ENDED | Shop at ECS Tuning | ||||
| 14 | Slip-ring seal | 1 | 11511274532 | $30.69 | ENDED | Shop at ECS Tuning | ||||
| 15 | Ring cover | 1 | 11511250339 | $21.60 | ENDED | Shop at ECS Tuning | ||||
| 16 | Rotor | 1 | 11511251138 | $21.99 | ENDED | Shop at ECS Tuning | ||||
| 17 | Repair kit water pump | 1 | 11511256545 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2800 Water pump?
- This technical diagram illustrates the Water pump within the Engine group for the 2500-3.3Li 2800 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Fan (Part #11521252660).
- Which models use the hardware listed in this Water pump?
- The hardware and components featured in the Water pump are specific to the 2500-3.3Li 2800 produced during 1971. These technical specifications ensure that parts like the Fan (11521252660) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Water pump assembly?
- Each item in the Water pump corresponds to the numbered list below the illustration. For the 2500-3.3Li 2800, you can identify the Fan by locating its position on the schematic, which then links to the official BMW part number 11521252660 for the Engine section.
