Cooling system-fan/fan coupling for BMW 2500-3.3Li 3.0L (1977)

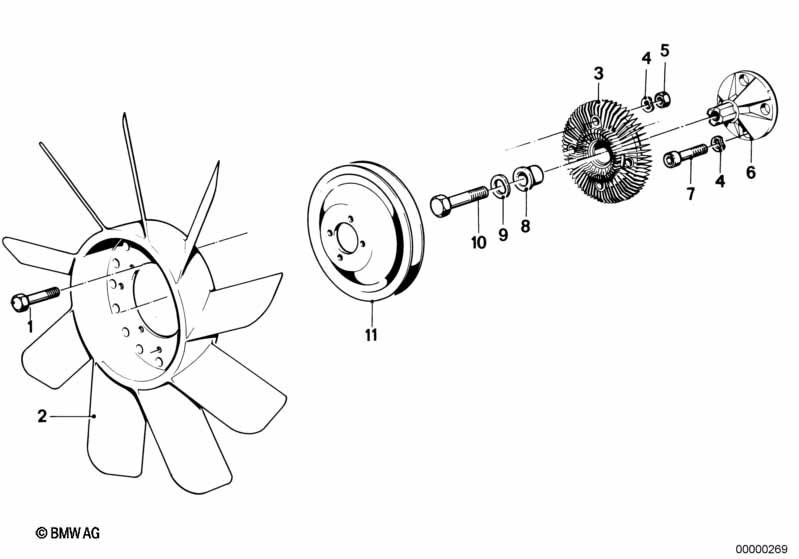

This Cooling system-fan/fan coupling technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex bolt | M6X28-8.8-ZNS | 4 | 07119913021 | $2.30 | Shop at ECS Tuning | ||||
| 02 | Fan 9 blade | D=420MM | 1 | 11521273086 | Shop at ECS Tuning | |||||
| 03 | Fan coupling | 1 | 11521264469 | $195.30 | ENDED | Shop at ECS Tuning | ||||
| 03 | Fan coupling | 1 | 11521260459 | $260.21 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Radiator | X | 17111112367 | $468.72 | Shop at ECS Tuning | |||||
| -- | Fan shroud | X | 17111115083 | $25.34 | Shop at ECS Tuning | |||||
| -- | Fan 9 blade | D=420MM | X | 11521271846 | $64.87 | ENDED | Shop at ECS Tuning | |||
| 04 | Wave washer | B6 | 8 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 05 | Hex nut | M6-8-ZNNIV SI | 4 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Flange | 1 | 11521259805 | $32.54 | Shop at ECS Tuning | |||||
| 07 | ISA screw | M6X16-8.8-ZNS3 | 4 | 07129905494 | $3.65 | Shop at ECS Tuning | ||||
| 08 | Shim | 1 | 11521276658 | $7.43 | Shop at ECS Tuning | |||||
| 09 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M8X28-ZN | 1 | 07119913659 | $0.47 | ENDED | Shop at ECS Tuning | |||
| 11 | Pulley | 1 | 11511251234 | $303.24 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Fan belt | 12,5X1055 | 1 | 11231711090 | $11.16 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0L Cooling system-fan/fan coupling?
- This technical diagram illustrates the Cooling system-fan/fan coupling within the Engine group for the 2500-3.3Li 3.0L produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Hex bolt (Part #07119913021).
- Which models use the hardware listed in this Cooling system-fan/fan coupling?
- The hardware and components featured in the Cooling system-fan/fan coupling are specific to the 2500-3.3Li 3.0L produced during 1977. These technical specifications ensure that parts like the Hex bolt (07119913021) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cooling system-fan/fan coupling assembly?
- Each item in the Cooling system-fan/fan coupling corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0L, you can identify the Hex bolt by locating its position on the schematic, which then links to the official BMW part number 07119913021 for the Engine section.
