Additional fan for BMW 2500-3.3Li 3.0Si (1975)

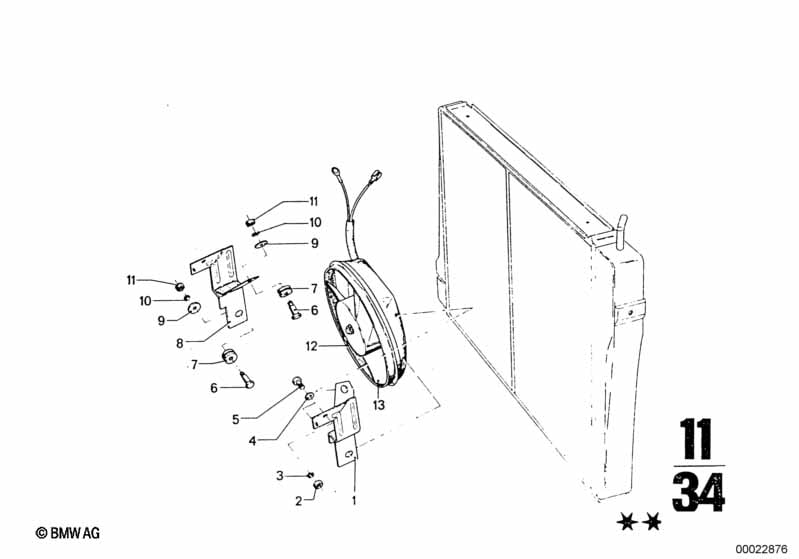

This Additional fan technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 01 | Bracket left | 1 | 08/1968 | 02/1977 | 17411354481 | ENDED | Shop at ECS Tuning | |||
| 02 | Hex nut | M6-8-ZNNIV SI | 4 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Spring washer | B6 | 4 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Washer | A6,4-ZNNIV SI | 8 | 07119904202 | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M6X16-8.8-ZNS3 | 4 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Fit bolt | M5 | 4 | 17401354522 | $1.17 | Shop at ECS Tuning | ||||
| 07 | Rubber grommet | 4 | 17401354524 | $0.70 | Shop at ECS Tuning | |||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 08 | Bracket right | 1 | 08/1968 | 02/1977 | 17411354482 | ENDED | Shop at ECS Tuning | |||
| 09 | Washer | 4 | 17401354523 | $0.63 | Shop at ECS Tuning | |||||
| 10 | Spring washer | B5 | 4 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 11 | Hex nut | M5-8-ZNNIV SI | 4 | 07119905729 | Shop at ECS Tuning | |||||
| 12 | Blower unit | 1 | 08/1968 | 02/1977 | 17411357252 | $447.52 | ENDED | Shop at ECS Tuning | ||
| 13 | Fan wheel | 1 | 17411360909 | $55.74 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
