Radiator for BMW 2500-3.3Li 3.0S (1973)

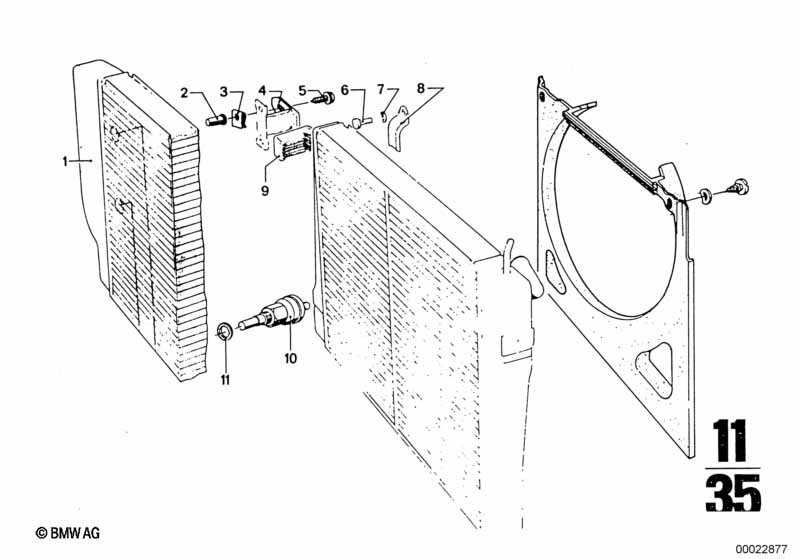

This Radiator technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Protective plug | 3 | 17114670114 | $0.26 | Shop at ECS Tuning | |||||
| 03 | Body nut | ST4,2-2 | 3 | 07129904245 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Support | 1 | 08/1968 | 02/1977 | 17111102011 | ENDED | Shop at ECS Tuning | |||
| 05 | Sheet metal screw | B6,5X16 | 3 | 12138530118 | $0.40 | ENDED | Shop at ECS Tuning | |||
| 06 | Hex bolt | M6X18 | 1 | 23317545769 | $0.67 | Shop at ECS Tuning | ||||
| 08 | Bow | 1 | 11531251145 | $1.51 | ENDED | Shop at ECS Tuning | ||||
| 09 | Rubber Mounting | 2 | 17111100000 | $4.46 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
