Radiator for BMW 2500-3.3Li 3.0L (1977)

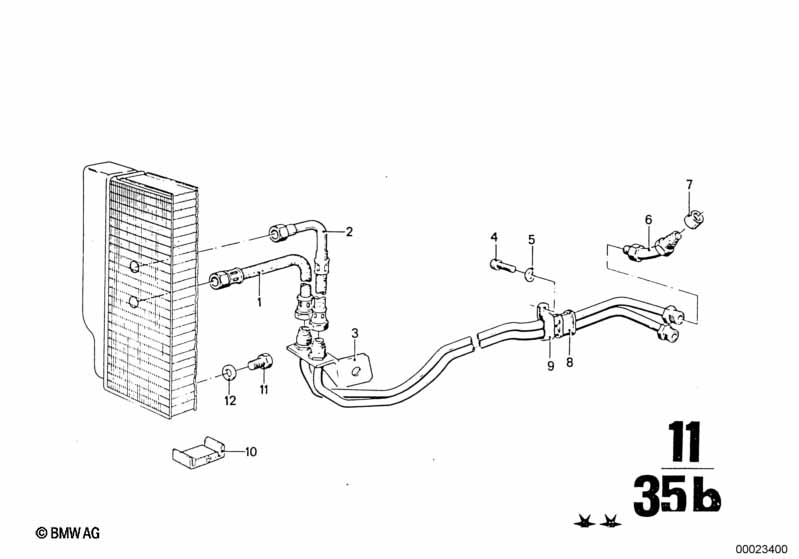

This Radiator technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 10 | Base | 2 | 17111100001 | $3.86 | ENDED | Shop at ECS Tuning | ||||
| 11 | Screw plug | 1 | 17111101872 | $2.53 | ENDED | Shop at ECS Tuning | ||||
| 12 | Gasket ring | A08X11,5-CU | 1 | 07119963042 | $0.09 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0L Radiator?
- This technical diagram illustrates the Radiator within the Radiator group for the 2500-3.3Li 3.0L produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Base (Part #17111100001).
- Which models use the hardware listed in this Radiator?
- The hardware and components featured in the Radiator are specific to the 2500-3.3Li 3.0L produced during 1977. These technical specifications ensure that parts like the Base (17111100001) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Radiator assembly?
- Each item in the Radiator corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0L, you can identify the Base by locating its position on the schematic, which then links to the official BMW part number 17111100001 for the Radiator section.
