Radiator for BMW 2500-3.3Li 2500 (1971)

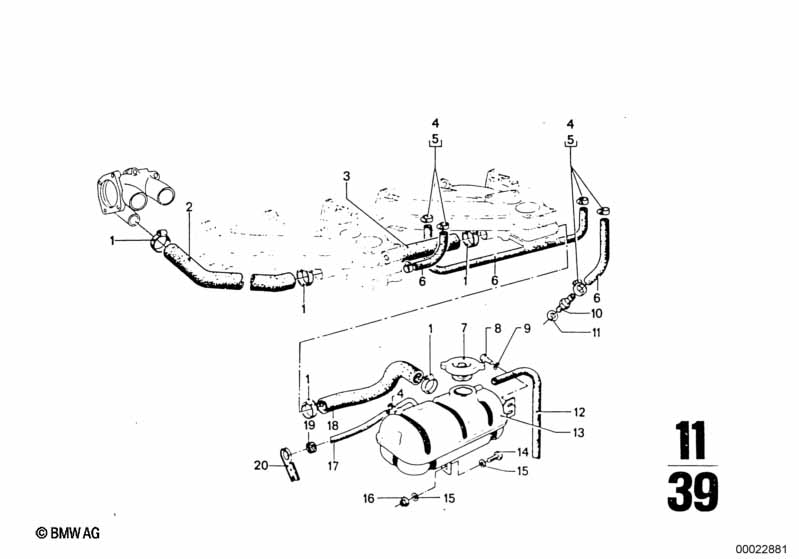

This Radiator technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose clamp | L28-33 | 6 | 08/1968 | 02/1977 | 07129952113 | $0.96 | Shop at ECS Tuning | ||
| 02 | Hose | 1 | 08/1968 | 02/1977 | 11531266509 | $21.40 | Shop at ECS Tuning | |||
| 03 | Hose | 1 | 08/1968 | 02/1977 | 11531266510 | $21.40 | Shop at ECS Tuning | |||
| 04 | Hose clamp | L=9-12 | 8 | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
| 05 | Hose clamp | L12-15 | 6 | 08/1968 | 02/1977 | 07129952104 | $1.18 | Shop at ECS Tuning | ||
| 06 | Fuel hose | 8X13MM | X | 08/1968 | 02/1977 | 16121180409 | $20.43 | Shop at ECS Tuning | ||
| 07 | Radiator cap | D=60 MM 1,0 BAR | 1 | 17111100848 | $17.06 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 10 | Connector | M10 | 1 | 11111250587 | $10.25 | ENDED | Shop at ECS Tuning | |||
| 11 | Gasket ring | A10X13.5-AL | 1 | 07119963073 | $0.11 | Shop at ECS Tuning | ||||
| 12 | Hose | 7X10MM | 1 | 17111150232 | $3.89 | +core | Shop at ECS Tuning | |||
| 13 | Expansion tank | 1 | 17111114790 | $110.70 | ENDED | Shop at ECS Tuning | ||||
| 13 | Expansion tank | 1 | 17111114743 | Shop at ECS Tuning | ||||||
| 14 | Hex bolt | M8X22-8.8-ZNS3 | 1 | 07119904040 | Shop at ECS Tuning | |||||
| 15 | Washer | 8,4X24X2-ZNS3 | 2 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 16 | Self-locking hex nut | M8 | 1 | 03/1987 | 07129922714 | $0.17 | ENDED | Shop at ECS Tuning | ||
| 16 | Self-locking hex nut | M8-8-ZNNI SI | 1 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 17 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 18 | Hose | 1 | 08/1968 | 02/1977 | 11531266508 | $36.38 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
