Intake manifold for BMW 2500-3.3Li 3.0SBav (1973)

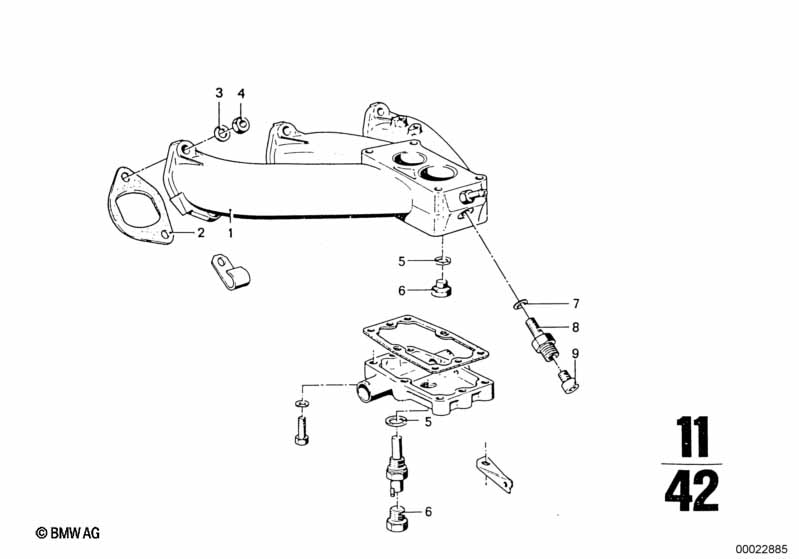

This Intake manifold technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0SBav. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake manifold front | 1 | 08/1968 | 02/1977 | 11611258040 | ENDED | Shop at ECS Tuning | |||
| 02 | Gasket Asbestos Free | 6 | 11619065676 | $4.18 | Shop at ECS Tuning | |||||
| 03 | Washer | 8,4X16X1,6-ZNNV | 12 | 07119907030 | Shop at ECS Tuning | |||||
| 04 | Hex nut wiht flange | M8 | 12 | 11611713432 | $0.43 | ENDED | Shop at ECS Tuning | |||
| 05 | Gasket ring | A14X18-AL | 2 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Screw plug | AM14X1,5 | 2 | 07119909704 | Shop at ECS Tuning | |||||
| 07 | Gasket ring | A10X13.5-AL | 1 | 08/1968 | 02/1977 | 07119963073 | $0.11 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0SBav Intake manifold?
- This technical diagram illustrates the Intake manifold within the Engine group for the 2500-3.3Li 3.0SBav produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Intake manifold front (Part #11611258040).
- Which models use the hardware listed in this Intake manifold?
- The hardware and components featured in the Intake manifold are specific to the 2500-3.3Li 3.0SBav produced during 1973. These technical specifications ensure that parts like the Intake manifold front (11611258040) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Intake manifold assembly?
- Each item in the Intake manifold corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0SBav, you can identify the Intake manifold front by locating its position on the schematic, which then links to the official BMW part number 11611258040 for the Engine section.
