Intake manifold for BMW 2500-3.3Li 2500 (1977)

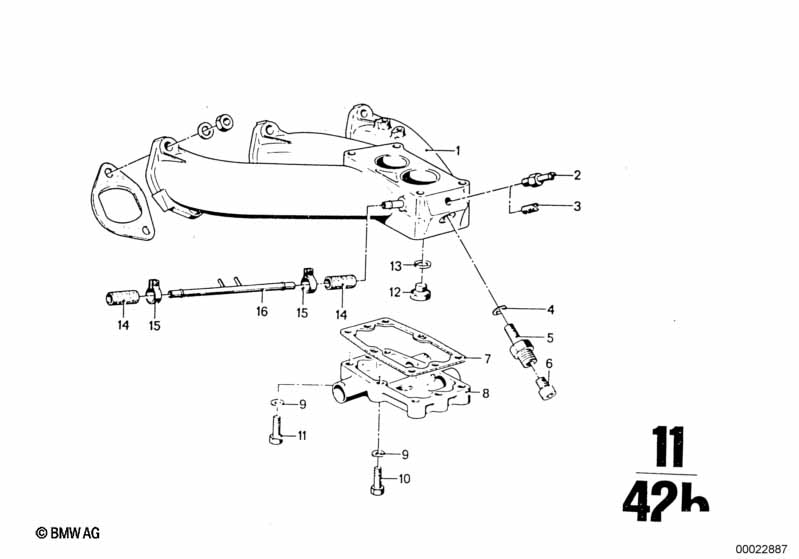

This Intake manifold technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 07 | Gasket Asbestos Free | 1 | 11619065674 | $3.05 | Shop at ECS Tuning | |||||
| 08 | Cover | 1 | 11611250693 | $107.19 | ENDED | Shop at ECS Tuning | ||||
| 09 | Wave washer | B6 | 4 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 10 | Hex bolt | M6X30-8.8-ZNS3 | 4 | 07119904116 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Screw plug | AM14X1,5 | 1 | 07119909704 | Shop at ECS Tuning | |||||
| 13 | Gasket ring | A14X18-AL | 1 | 07119963200 | $0.38 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2500 Intake manifold?
- This technical diagram illustrates the Intake manifold within the Engine group for the 2500-3.3Li 2500 produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Gasket Asbestos Free (Part #11619065674).
- Which models use the hardware listed in this Intake manifold?
- The hardware and components featured in the Intake manifold are specific to the 2500-3.3Li 2500 produced during 1977. These technical specifications ensure that parts like the Gasket Asbestos Free (11619065674) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Intake manifold assembly?
- Each item in the Intake manifold corresponds to the numbered list below the illustration. For the 2500-3.3Li 2500, you can identify the Gasket Asbestos Free by locating its position on the schematic, which then links to the official BMW part number 11619065674 for the Engine section.
