Crankshaft with bearing shells for BMW 2500-3.3Li 2500 (1970)

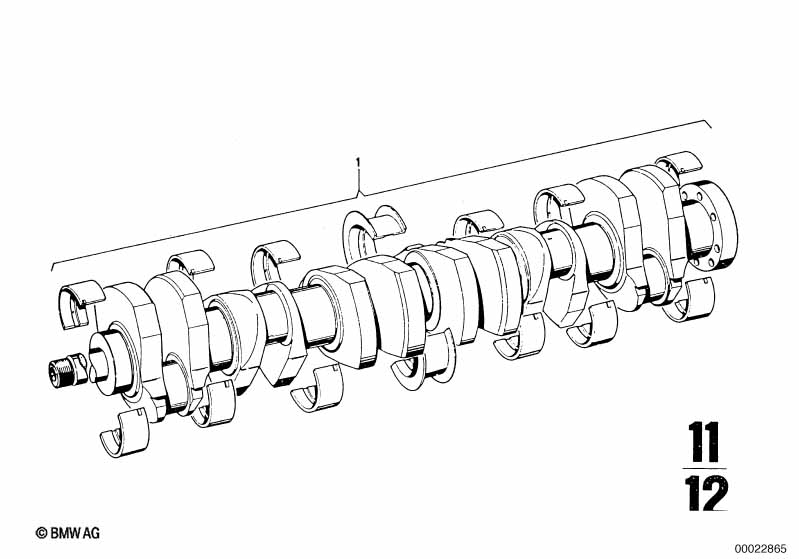

This Crankshaft with bearing shells technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Crankshaft with bearing shells | HUB 71,6MM | 1 | 08/1968 | 02/1977 | 11211255212 | $873.27 | ENDED | Shop at ECS Tuning | |
| only in conjunction with | ||||||||||
| 01 | Crankshaft without bearing shells | HUB 71,6MM | 1 | 08/1968 | 02/1977 | 11211250038 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| 01 | Crankshaft with bearing shells | 1 | 08/1968 | 02/1977 | 11211271967 | $873.27 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Grooved ball bearing | 1 | 08/1968 | 02/1977 | 11211709934 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2500 Crankshaft with bearing shells?
- This technical diagram illustrates the Crankshaft with bearing shells within the Engine group for the 2500-3.3Li 2500 produced during 1970. It provides a detailed exploded view of the components, identifying key parts such as the Crankshaft with bearing shells (Part #11211255212).
- Which models use the hardware listed in this Crankshaft with bearing shells?
- The hardware and components featured in the Crankshaft with bearing shells are specific to the 2500-3.3Li 2500 produced during 1970. These technical specifications ensure that parts like the Crankshaft with bearing shells (11211255212) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Crankshaft with bearing shells assembly?
- Each item in the Crankshaft with bearing shells corresponds to the numbered list below the illustration. For the 2500-3.3Li 2500, you can identify the Crankshaft with bearing shells by locating its position on the schematic, which then links to the official BMW part number 11211255212 for the Engine section.
