Crankshaft with bearing shells for BMW 2500-3.3Li 2500 (1971)

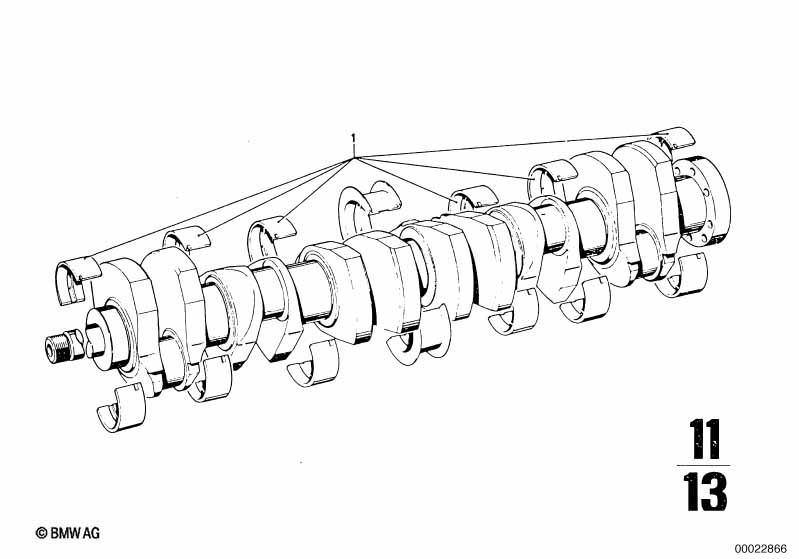

This Crankshaft with bearing shells technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bearing shell, red | 60,00MM | 12 | 08/1968 | 02/1977 | 11211261041 | $13.78 | Shop at ECS Tuning | ||
| 01 | Bearing shell, blue | 60,00MM | 12 | 08/1968 | 02/1977 | 11211261042 | $13.78 | Shop at ECS Tuning | ||
| 01 | Bearing shell, red | 59,75MM(+0,25) | 12 | 08/1968 | 02/1977 | 11211261043 | $15.98 | Shop at ECS Tuning | ||
| 01 | Bearing shell, blue | 59,75MM(+0,25) | 12 | 08/1968 | 02/1977 | 11211261044 | $12.16 | ENDED | Shop at ECS Tuning | |
| 01 | Bearing shell, red | 59,50MM(+0,50) | 12 | 08/1968 | 02/1977 | 11211261045 | $15.98 | Shop at ECS Tuning | ||
| 01 | Bearing shell, blue | 59,50MM(+0,50) | 12 | 08/1968 | 02/1977 | 11211261046 | $21.31 | Shop at ECS Tuning | ||
| 01 | Bearing shell, red | 59,25MM(+0,75) | 12 | 08/1968 | 02/1977 | 11211261047 | $15.98 | ENDED | Shop at ECS Tuning | |
| 01 | Bearing shell, blue | 59,25MM(+0,75) | 12 | 08/1968 | 02/1977 | 11211261048 | $20.09 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
