Oil filter for BMW 2500-3.3Li 3.3L (1975)

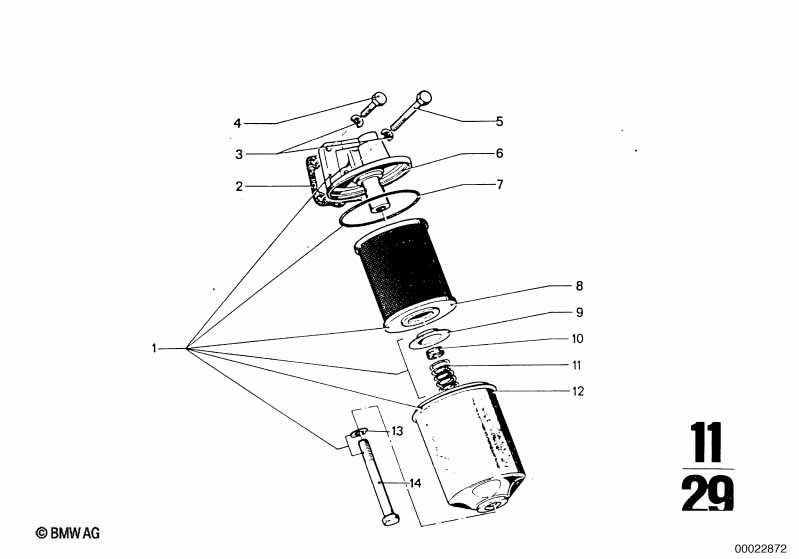

This Oil filter technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil filter | 1 | 11421254064 | ENDED | Shop at ECS Tuning | |||||
| 01 | Oil filter | 1 | 11421716583 | $175.14 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Hex bolt | M8X80 | 1 | 07119912558 | $2.89 | Shop at ECS Tuning | ||||
| -- | Hex bolt | M10X120-8.8-ZN | 1 | 07119912720 | $1.58 | Shop at ECS Tuning | ||||
| -- | Gasket ring | A10X16-CU | 1 | 07119963106 | $0.10 | Shop at ECS Tuning | ||||
| 02 | Gasket Asbestos Free | 1 | 11421730264 | $2.47 | Shop at ECS Tuning | |||||
| 03 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X30-ZN | 2 | 07119913662 | $0.22 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M8X60-ZNNIV SI | 2 | 07119905974 | Shop at ECS Tuning | |||||
| 06 | Oil filter head | 1 | 11421251966 | ENDED | Shop at ECS Tuning | |||||
| 06 | Oil filter | 1 | 11421716583 | $175.14 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Hex bolt | M8X80 | 1 | 07119912558 | $2.89 | Shop at ECS Tuning | ||||
| -- | Hex bolt | M10X120-8.8-ZN | 1 | 07119912720 | $1.58 | Shop at ECS Tuning | ||||
| -- | Gasket ring | A10X16-CU | 1 | 07119963106 | $0.10 | Shop at ECS Tuning | ||||
| 07 | O-ring | 102X4MM | 1 | 11421252222 | $5.56 | ENDED | Shop at ECS Tuning | |||
| 08 | Oil filter insert | 1 | 11421256714 | Shop at ECS Tuning | ||||||
| 09 | Reinforcement | 1 | 11421252466 | $1.33 | Shop at ECS Tuning | |||||
| 10 | Gasket ring | 1 | 11421252465 | $2.81 | ENDED | Shop at ECS Tuning | ||||
| 11 | Compression spring | 1 | 11421252467 | $0.95 | Shop at ECS Tuning | |||||
| 12 | Oil filter housing | 1 | 11421252464 | $73.96 | ENDED | Shop at ECS Tuning | ||||
| 13 | Gasket ring | A12X15-CU | 1 | 07119963129 | $0.11 | Shop at ECS Tuning | ||||
| 14 | Hex bolt | M12X120 | 1 | 07119912811 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
