Lubrication system/Oil pump with drive for BMW 1502-2002tii 2002 (1973)

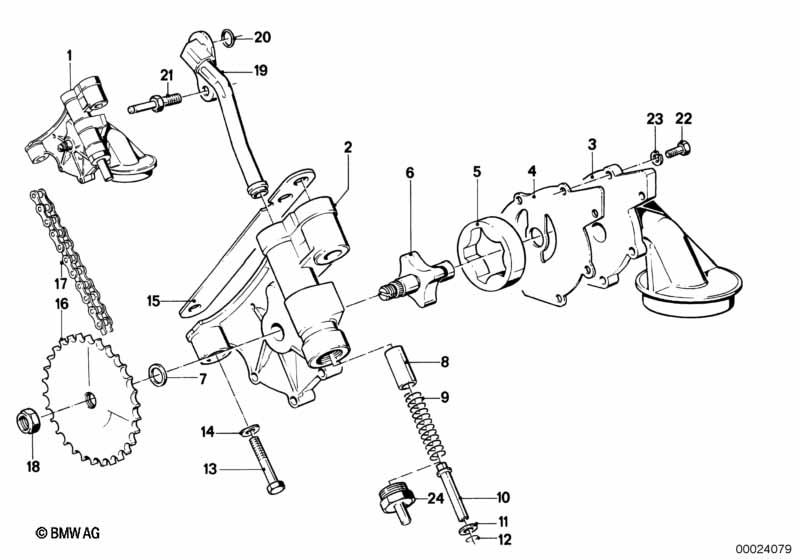

This Lubrication system/Oil pump with drive technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil pump | 1 | 02/1962 | 07/1977 | 11411269549 | $375.91 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Sprocket | 1 | 02/1962 | 07/1977 | 11411273688 | $14.87 | Shop at ECS Tuning | |||
| -- | Self-locking hex nut | M10X1 | 1 | 02/1962 | 07/1977 | 07129922436 | $0.54 | Shop at ECS Tuning | ||
| -- | Shim | 12X18X1,7 | 1 | 02/1962 | 07/1977 | 07119932634 | $0.28 | ENDED | Shop at ECS Tuning | |
| 02 | Oil pump housing | 1 | 11411267199 | $57.13 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Rotor inner | 1 | 11411267379 | $66.00 | Shop at ECS Tuning | |||||
| -- | Sprocket | 1 | 11411273688 | $14.87 | Shop at ECS Tuning | |||||
| -- | Self-locking hex nut | M10X1 | 1 | 07129922436 | $0.54 | Shop at ECS Tuning | ||||
| -- | Shim | 12X18X1,7 | 1 | 07119932634 | $0.28 | ENDED | Shop at ECS Tuning | |||
| 04 | Intermediate plate | 1 | 11411263218 | $2.62 | Shop at ECS Tuning | |||||
| 05 | Rotor,outer | 1 | 11411250844 | $11.44 | Shop at ECS Tuning | |||||
| 06 | Rotor inner | 1 | 11411267379 | $66.00 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Sprocket | 1 | 11411273688 | $14.87 | Shop at ECS Tuning | |||||
| -- | Self-locking hex nut | M10X1 | 1 | 07129922436 | $0.54 | Shop at ECS Tuning | ||||
| -- | Shim | 12X18X1,7 | 1 | 07119932634 | $0.28 | ENDED | Shop at ECS Tuning | |||
| 07 | Shim | 12X18X1,7 | 1 | 07119932634 | $0.28 | ENDED | Shop at ECS Tuning | |||
| 08 | Piston | 1 | 11421271320 | $3.21 | Shop at ECS Tuning | |||||
| 09 | Compression spring | 1 | 11411744324 | $1.27 | Shop at ECS Tuning | |||||
| 10 | Guide tube | 1 | 11411267201 | $34.86 | Shop at ECS Tuning | |||||
| 11 | Washer | 1 | 11411267200 | $0.82 | Shop at ECS Tuning | |||||
| 12 | Lock Ring | 16X1 | 1 | 07119934619 | $0.18 | Shop at ECS Tuning | ||||
| 13 | Hex bolt | M8X45-8.8-ZNS3 | 2 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 14 | Wave washer | 8,4X15-ZNS3 | 3 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 15 | Spacer plate | 0,100MM | X | 11411250427 | $4.62 | Shop at ECS Tuning | ||||
| 15 | Spacer plate | 0,300MM | X | 11411250428 | $1.20 | ENDED | Shop at ECS Tuning | |||
| 16 | Sprocket | 1 | 11411273688 | $14.87 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Rotor inner | 1 | 11411267379 | $66.00 | Shop at ECS Tuning | |||||
| -- | Self-locking hex nut | M10X1 | 1 | 07129922436 | $0.54 | Shop at ECS Tuning | ||||
| -- | Shim | 12X18X1,7 | 1 | 07119932634 | $0.28 | ENDED | Shop at ECS Tuning | |||
| 17 | Chain | 1 | 11411716989 | $28.90 | ENDED | Shop at ECS Tuning | ||||
| 18 | Hex nut | M10X1 FLACH | 1 | 07119901301 | $0.33 | Shop at ECS Tuning | ||||
| 19 | Pressure hose assy | 1 | 11411256970 | $189.53 | Shop at ECS Tuning | |||||
| 20 | O-ring | 11,7X3 | 2 | 11437794484 | Shop at ECS Tuning | |||||
| 21 | Bolt | 1 | 11411250426 | $4.77 | Shop at ECS Tuning | |||||
| 22 | Hex bolt | M6X25 | 6 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| 23 | Spring washer Black | B6-ZN | 6 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
