Oil pump for BMW 2.5CS-3.0CSL 3.0CSL (1973)

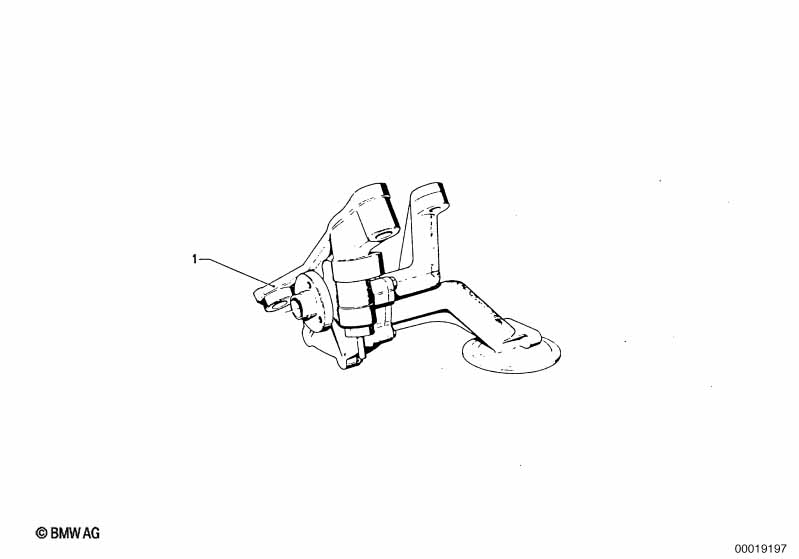

This Oil pump technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil pump | 1 | 11411269550 | $589.06 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Sprocket | 1 | 11411273689 | $30.94 | Shop at ECS Tuning | |||||
| -- | Self-locking hex nut | M10X1 | 1 | 07129922436 | $0.54 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2.5CS-3.0CSL 3.0CSL Oil pump?
- This technical diagram illustrates the Oil pump within the Engine group for the 2.5CS-3.0CSL 3.0CSL produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Oil pump (Part #11411269550).
- Which models use the hardware listed in this Oil pump?
- The hardware and components featured in the Oil pump are specific to the 2.5CS-3.0CSL 3.0CSL produced during 1973. These technical specifications ensure that parts like the Oil pump (11411269550) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Oil pump assembly?
- Each item in the Oil pump corresponds to the numbered list below the illustration. For the 2.5CS-3.0CSL 3.0CSL, you can identify the Oil pump by locating its position on the schematic, which then links to the official BMW part number 11411269550 for the Engine section.
