Exhaust manifold for BMW 3 Series E46 318i (1998)

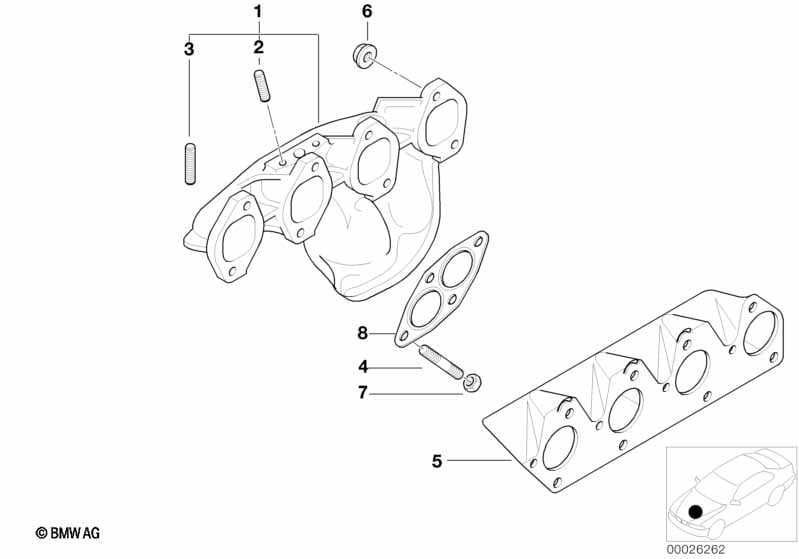

This Exhaust manifold technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust manifold | 1 | 11621732924 | +core | Shop at ECS Tuning | |||||
| For vehicles with EU2 exhaust emissions standard or without catalytic converter |
S168A=Yes S199A=Yes |
|||||||||
| 01 | Exhaust manifold | 1 | 11621437233 | +core | Shop at ECS Tuning | |||||
| 02 | Stud bolt | M7X30 | 2 | 11621437204 | Shop at ECS Tuning | |||||
| 03 | Stud bolt | M7X22 | 1 | 11621437203 | Shop at ECS Tuning | |||||
| 04 | Stud bolt | M10X35 | 4 | 11621708999 | $2.20 | Shop at ECS Tuning | ||||
| 05 | Gasket w/heat prot.shield asbestosfree | 1 | 11621743719 | $46.08 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex nut wiht flange | M8 | 8 | 18307620549 | Shop at ECS Tuning | |||||
| 06 | Hex nut wiht flange | M8 | 8 | 18307620549 | Shop at ECS Tuning | |||||
| 07 | Hex nut | M10 | 4 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 08 | Gasket Asbestos Free | 1 | 18301728208 | $17.66 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex nut | M10 | 4 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
