Engine block for BMW 5 Series E39 M5 (1999)

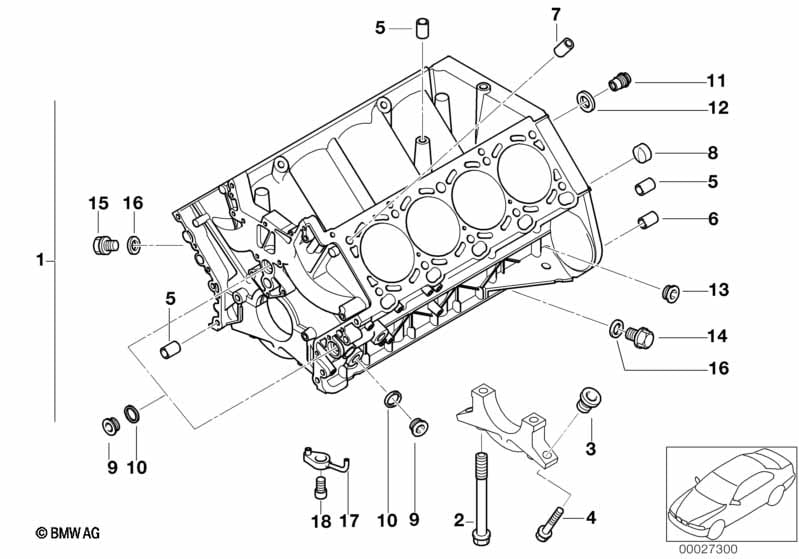

This Engine block technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine block without pistons | D94 / STUFE 0 | 1 | 11111407420 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | non-return valve | 2 | 11111734667 | $11.15 | Shop at ECS Tuning | |||||
| -- | Spacer sleeve | 2 | 11111739185 | $3.60 | Shop at ECS Tuning | |||||
| 02 | Collar screw | M11X99 | 10 | 11117628302 | Shop at ECS Tuning | |||||
| 03 | Spacer bush | 10 | 11111710132 | $5.27 | Shop at ECS Tuning | |||||
| 04 | Collar screw | M8X31 | 10 | 11111736005 | $0.77 | Shop at ECS Tuning | ||||
| 05 | Dowel | D=10,5MM | 6 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 06 | Dowel | D=14,5MM | 2 | 11111743118 | $1.65 | Shop at ECS Tuning | ||||
| 07 | Dowel | D=12,5MM | 4 | 11121726241 | $1.62 | Shop at ECS Tuning | ||||
| 08 | Cover lid | D=15MM | 2 | 07119937230 | $0.59 | Shop at ECS Tuning | ||||
| 09 | Screw plug | M16X1,5 | 3 | 07119902292 | $2.83 | Shop at ECS Tuning | ||||
| 10 | Gasket ring | A16X22-CUSN | 3 | 32411093597 | $0.27 | Shop at ECS Tuning | ||||
| 11 | Regulating valve | 1 | 11427500565 | $17.97 | Shop at ECS Tuning | |||||
| 12 | O-ring | 18,0X2,5MM | 1 | 11421741129 | $1.81 | Shop at ECS Tuning | ||||
| 13 | Screw plug | M10X1 | 4 | 11122244830 | $2.12 | Shop at ECS Tuning | ||||
| 14 | Screw plug | M14X1,5-ST-ZNS3 | 1 | 07119904392 | $2.08 | Shop at ECS Tuning | ||||
| 15 | Screw plug | M14X1,5-ST-ZNS3 | 1 | 07119904392 | $2.08 | Shop at ECS Tuning | ||||
| 16 | Gasket ring | A14X20-AL | 2 | 07119963225 | $0.11 | Shop at ECS Tuning | ||||
| 17 | Oil Spraying Nozzle | 8 | 11421407783 | $26.45 | Shop at ECS Tuning | |||||
| 18 | ISA screw | M6X25-8.8-ZNS3 | 8 | 07129903807 | $1.74 | Shop at ECS Tuning | ||||
