Engine Block Mounting Parts for BMW 5 Series E39 M5 (1999)

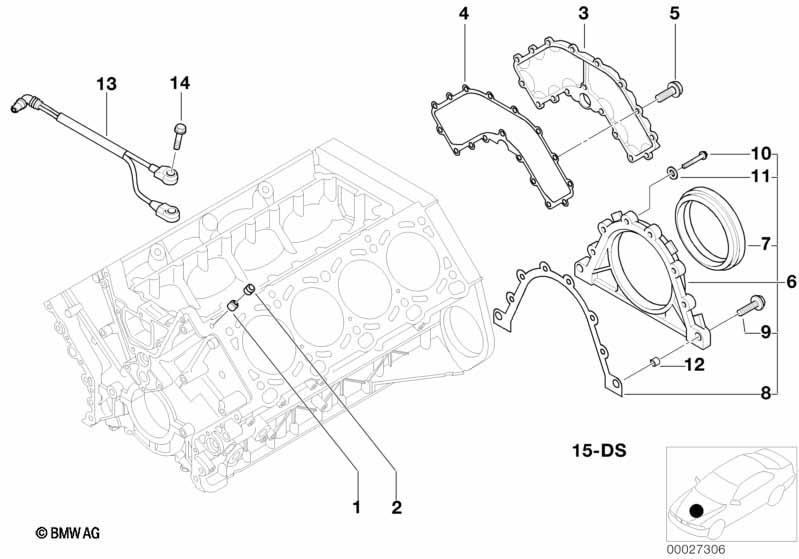

This Engine Block Mounting Parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | non-return valve | 2 | 11111734667 | $11.15 | Shop at ECS Tuning | |||||
| 02 | Spacer sleeve | 2 | 11111739185 | $3.60 | Shop at ECS Tuning | |||||
| 03 | Cover | 1 | 11141406230 | $101.97 | +core | Shop at ECS Tuning | ||||
| 04 | Gasket Asbestos Free | 1 | 11141405969 | $9.71 | Shop at ECS Tuning | |||||
| 05 | Hex bolt with washer | M6X18-U1 | 19 | 07119905399 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Set of covers | 1 | 11141436109 | $93.61 | +core | Shop at ECS Tuning | ||||
| 07 | Shaft seal | 100X125X13 | 1 | 11141710247 | $64.06 | Shop at ECS Tuning | ||||
| 08 | Gasket Asbestos Free | 1 | 11141736521 | $2.62 | Shop at ECS Tuning | |||||
| 09 | Hex bolt with washer | M8X35-U1 | 2 | 07119905533 | $0.44 | Shop at ECS Tuning | ||||
| 10 | Torx bolt | M6X35 | 6 | 11141433439 | $0.72 | Shop at ECS Tuning | ||||
| 11 | Washer-gasket | 6 | 11141435968 | $2.45 | Shop at ECS Tuning | |||||
| 12 | Dowel | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 13 | Ping Sensor | 2 | 13627568421 | $90.58 | Shop at ECS Tuning | |||||
| 14 | Hex bolt | M8X30-8.8-ZNS3 | 4 | 07119902901 | $0.25 | Shop at ECS Tuning | ||||
| 15 | Gasket Set Engine Block Asbesto Free | 1 | 11111407804 | $347.93 | Shop at ECS Tuning |
