Lower timing case for BMW 5 Series E39 M5 (1999)

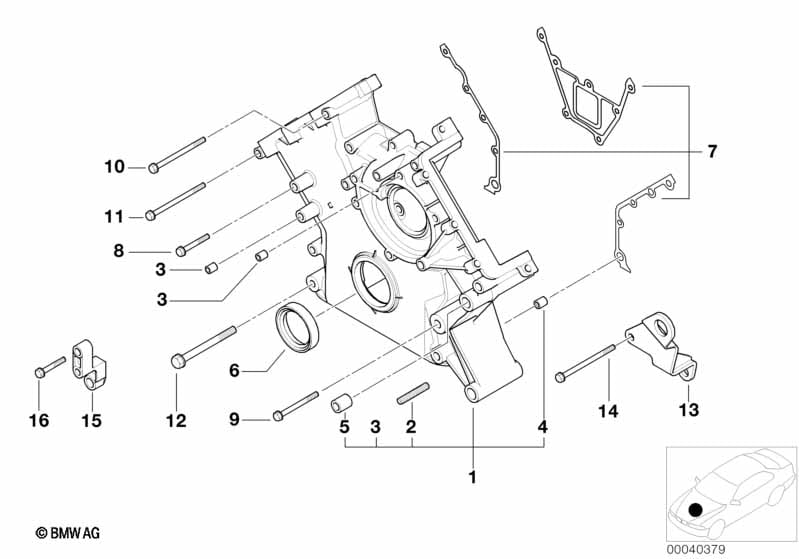

This Lower timing case technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Timing case cover, bottom | 1 | 11141407316 | $466.49 | Shop at ECS Tuning | |||||
| 02 | Stud bolt | M8X50-ZNS | 1 | 07129901917 | $0.61 | Shop at ECS Tuning | ||||
| 03 | Dowel | D=8,5X9MM | 4 | 11121726242 | $1.07 | Shop at ECS Tuning | ||||
| 04 | Dowel | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 05 | Dowel | D=12,5MM | 1 | 11121726241 | $1.62 | Shop at ECS Tuning | ||||
| 06 | Shaft seal | 48X65X10 | 1 | 11141275466 | $24.02 | Shop at ECS Tuning | ||||
| 07 | Gasket Steel | 1 | 11140001187 | $32.50 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M6X40 | 3 | 11141731753 | $0.58 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M6X65-Z1 | 2 | 11141438558 | $0.72 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M6X75 | 3 | 11141731752 | $0.73 | Shop at ECS Tuning | ||||
| 11 | Hex bolt with washer | M6X85-U1-8.8 | 2 | 07119905548 | $3.42 | Shop at ECS Tuning | ||||
| 12 | Hex bolt with washer | M8X85-U1-8.8 | 3 | 07119906141 | $1.89 | Shop at ECS Tuning | ||||
| 13 | Bracket | 1 | 11141407930 | $28.47 | Shop at ECS Tuning | |||||
| 14 | Hex bolt | M8X95-10.9-ZNS3 | 1 | 07119904996 | $1.53 | Shop at ECS Tuning | ||||
| 15 | Lever | 1 | 11141407747 | $36.08 | +core | Shop at ECS Tuning | ||||
| 16 | Hex bolt with washer | M6X40 | 2 | 11141731753 | $0.58 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
