Upper timing case for BMW 5 Series E39 M5 (2003)

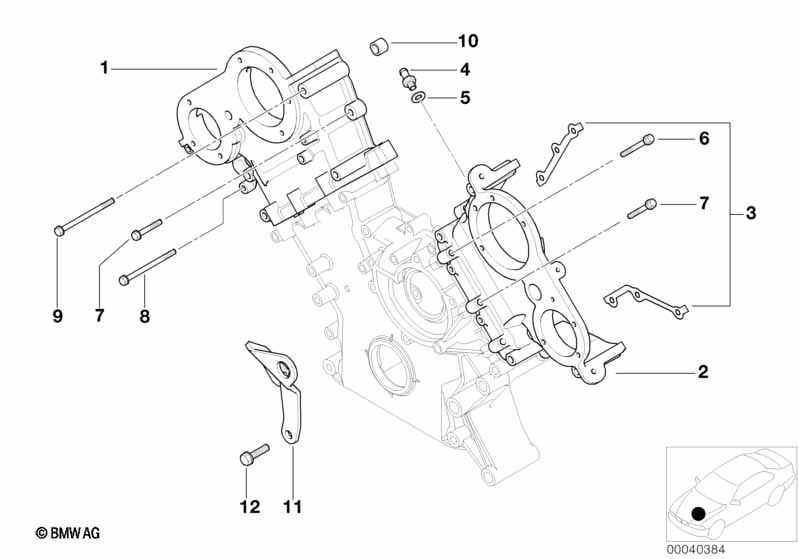

This Upper timing case technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Timing case cover, top | ZYL. 1-4 | 1 | 11141407574 | $432.00 | +core | Shop at ECS Tuning | |||
| Required for repair | ||||||||||
| -- | Loctite 5970 liquid sealant | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
| 02 | Timing case cover, top | ZYL. 5-8 | 1 | 11147830134 | $432.00 | +core | Shop at ECS Tuning | |||
| Required for repair | ||||||||||
| -- | Loctite 5970 liquid sealant | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
| 03 | Gasket Steel | 2 | 11140001186 | $16.27 | Shop at ECS Tuning | |||||
| 04 | Connector | 2 | 11367830148 | $12.77 | Shop at ECS Tuning | |||||
| 05 | Gasket ring | A08X11,5-CU | 2 | 07119963042 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M6X30-ZNNIV SI | 4 | 07119906123 | $0.81 | Shop at ECS Tuning | ||||
| 07 | Fillister head with washer | M6X35-ZNNIV SI | 6 | 07119906058 | Shop at ECS Tuning | |||||
| 07 | Hex bolt with washer | M6X35 | 4 | 11141407248 | $2.03 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M6X70 | 1 | 11141407247 | $4.33 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M6X80-U1-8.8 | 8 | 07119906085 | Shop at ECS Tuning | |||||
| 10 | Gasket ring | 8,1X3,5X7,7 | 1 | 11141736758 | $1.71 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
