Oil pan bottom part, oil level indicator for BMW 5 Series E39 M5 (1999)

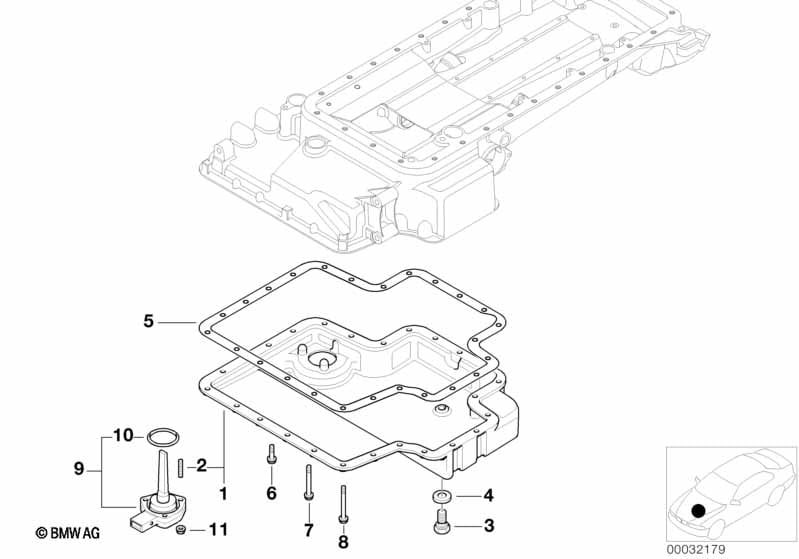

This Oil pan bottom part, oil level indicator technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil Pan | 1 | 11130396711 | $379.13 | +core | Shop at ECS Tuning | ||||
| 03 | Screw plug | M12X1,5-ZNS | 1 | 07119903199 | $2.18 | Shop at ECS Tuning | ||||
| 04 | Gasket ring | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 05 | Gasket Steel | 1 | 11131407532 | $24.02 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex bolt with washer | M6X55-Z1 | 4 | 07119904526 | $0.56 | Shop at ECS Tuning | ||||
| -- | Hex bolt with washer | M6X50-ZNNIV SI | 3 | 07119905377 | $0.53 | Shop at ECS Tuning | ||||
| -- | Hex bolt with washer | M6X22-U1ZNNIVSI | 18 | 07119905526 | $0.64 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M6X22-U1ZNNIVSI | 18 | 07119905526 | $0.64 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X50-ZNNIV SI | 3 | 07119905377 | $0.53 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M6X55-Z1 | 4 | 07119904526 | $0.56 | Shop at ECS Tuning | ||||
| 09 | Oil levelling sensor | 1 | 12617508003 | $163.50 | Shop at ECS Tuning | |||||
| 10 | Gasket ring | 1 | 12611744292 | $6.42 | Shop at ECS Tuning | |||||
| 11 | Hex nut with plate | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 M5 Oil pan bottom part, oil level indicator?
- This technical diagram illustrates the Oil pan bottom part, oil level indicator within the Engine group for the 5 Series E39 M5 produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Oil Pan (Part #11130396711).
- Which models use the hardware listed in this Oil pan bottom part, oil level indicator?
- The hardware and components featured in the Oil pan bottom part, oil level indicator are specific to the 5 Series E39 M5 produced during 1999. These technical specifications ensure that parts like the Oil Pan (11130396711) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Oil pan bottom part, oil level indicator assembly?
- Each item in the Oil pan bottom part, oil level indicator corresponds to the numbered list below the illustration. For the 5 Series E39 M5, you can identify the Oil Pan by locating its position on the schematic, which then links to the official BMW part number 11130396711 for the Engine section.
