Cylinder Head for BMW 5 Series E39 M5 (1999)

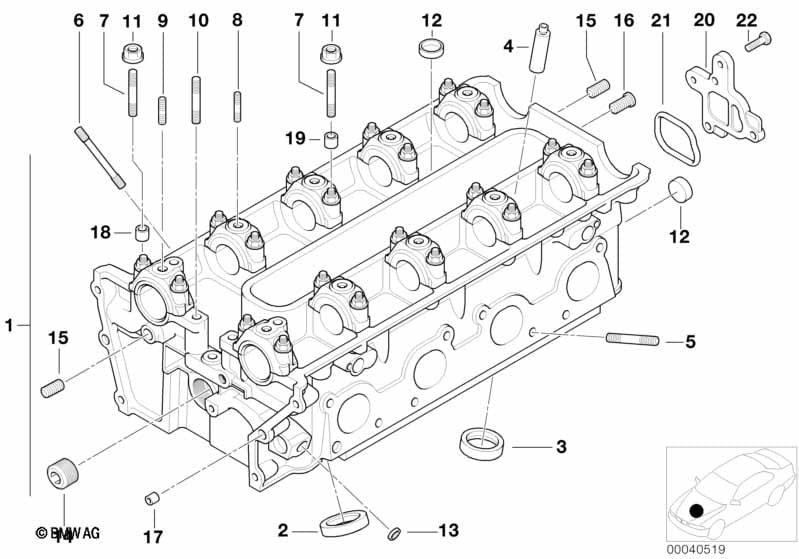

This Cylinder Head technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder Head | ZYL. 1-4 | 1 | 11121407003 | $3593.20 | +core | Shop at ECS Tuning | |||
| 01 | Cylinder Head | ZYL. 5-8 | 1 | 11121407007 | $3593.20 | +core | Shop at ECS Tuning | |||
| 02 | Valve Seat Ring Intake | 36,50MM(+0,4) | 16 | 11121432426 | $13.46 | Shop at ECS Tuning | ||||
| 03 | Valve Seat Ring Exhaust | 32,00MM(+0,4) | 16 | 11121432427 | $13.46 | Shop at ECS Tuning | ||||
| see service information SIT 843 11 02 88 (valve stem oversize) |
||||||||||
| 04 | Valve Guide | 12,7MM(+0,2) | 32 | 11121735533 | ENDED, SI 110288843 | Shop at ECS Tuning | ||||
| 05 | Stud bolt | M8X42-10.9-PHR | 16 | 07129908157 | $0.24 | Shop at ECS Tuning | ||||
| 06 | Stud bolt | M7X45-ZNS | 16 | 07129901925 | $1.15 | ENDED | Shop at ECS Tuning | |||
| 07 | Stud bolt | M7X50-10.9-PHR | 40 | 07129908191 | $0.30 | Shop at ECS Tuning | ||||
| 08 | Stud bolt | M6X30-ZNNIV SI | 16 | 07129904544 | $1.42 | Shop at ECS Tuning | ||||
| 09 | Stud bolt | M6X25-ZN | 4 | 07129908100 | $0.20 | Shop at ECS Tuning | ||||
| 10 | Stud bolt | M7X50-10.9-PHR | 4 | 07129908191 | $0.30 | Shop at ECS Tuning | ||||
| 11 | Flange nut | M7 | 40 | 11617573839 | $0.33 | Shop at ECS Tuning | ||||
| 12 | Cover lid | 22,0MM | 8 | 11121733403 | $2.15 | Shop at ECS Tuning | ||||
| 13 | Cover lid | 12,0MM | 6 | 11121736330 | $2.15 | Shop at ECS Tuning | ||||
| 14 | Screw plug | M26X1,5 | 2 | 11121407412 | $8.03 | Shop at ECS Tuning | ||||
| 15 | Screw plug | M10X1-8.8-ZNNIV | 8 | 11127539543 | $2.12 | Shop at ECS Tuning | ||||
| 16 | Screw plug | M10X1-ZNNIV SI | 2 | 03/2002 | 11117545229 | $2.12 | Shop at ECS Tuning | |||
| 16 | Screw plug | M10X1-ZNNIV SI | 2 | 11117545229 | $2.12 | Shop at ECS Tuning | ||||
| 17 | Dowel | D=8,5X9MM | 4 | 11121726242 | $1.07 | Shop at ECS Tuning | ||||
| 18 | Dowel | D=9,5MM | 8 | 11121713264 | $3.48 | Shop at ECS Tuning | ||||
| 19 | Dowel | 9,5/16,5MM | 32 | 11121407564 | $7.25 | Shop at ECS Tuning | ||||
| 20 | Cover | ZYL. 1-4 | 1 | 03/1999 | 11127830118 | $31.03 | +core | Shop at ECS Tuning | ||
| 20 | Cover | ZYL. 5-8 | 1 | 03/1999 | 11127830117 | $31.03 | +core | Shop at ECS Tuning | ||
| 21 | O-ring | 2 | 11127830119 | $4.92 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Cover | ZYL. 5-8 | X | 11127830117 | $31.03 | +core | Shop at ECS Tuning | |||
| -- | Cover | ZYL. 1-4 | X | 11127830118 | $31.03 | +core | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
