Cylinder Head Attached Parts for BMW 5 Series E39 M5 (1999)

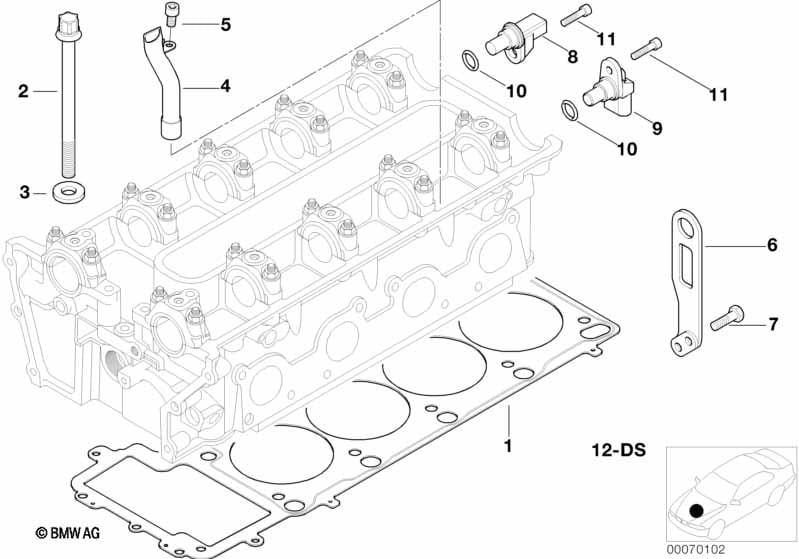

This Cylinder Head Attached Parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO CYLINDER 5-8 | ||||||||||
| 01 | Cylinder Head Gasket Asbestos-Free | 1,74MM | 1 | 11127833734 | $119.83 | Shop at ECS Tuning | ||||
| 01 | Cylinder Head Gasket Asbestos-Free | +0,3MM | 1 | 11127833759 | $119.83 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO CYLINDER 1-4 | ||||||||||
| 01 | Cylinder Head Gasket Asbestos-Free | 1,74MM | 1 | 11127833733 | $119.83 | Shop at ECS Tuning | ||||
| 01 | Cylinder Head Gasket Asbestos-Free | +0,3MM | 1 | 11127833758 | $119.83 | Shop at ECS Tuning | ||||
| 02 | Set Bolt Cylinder Head | M10X110 | 2 | 11127583115 | $37.47 | Shop at ECS Tuning | ||||
| 03 | Washer | 20 | 11127550856 | $0.65 | Shop at ECS Tuning | |||||
| 04 | Pipe | 2 | 11121407206 | $33.79 | +core | Shop at ECS Tuning | ||||
| 05 | Fillister-head screw | M6X12-8.8-ZNS | 2 | 07119920148 | $0.62 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO CYLINDER 1-4 | ||||||||||
| 06 | Shackle | ZYL. 1-4 | 1 | 11121406717 | $8.10 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M8X25-8.8-ZNNIV | 2 | 07119905394 | $0.64 | Shop at ECS Tuning | ||||
| only applies to inlet camshaft | ||||||||||
| 08 | Camshaft position sensor | 2 | 12147539173 | $116.05 | Shop at ECS Tuning | |||||
| only applies to outlet camshaft | ||||||||||
| 09 | Camshaft position sensor | 2 | 13627796054 | $116.05 | Shop at ECS Tuning | |||||
| 10 | O-ring | 17X3 | 4 | 12141748398 | $1.20 | Shop at ECS Tuning | ||||
| 11 | ISA screw | M6X25 | 4 | 07129904700 | $2.03 | Shop at ECS Tuning | ||||
| 12 | Gasket Set Cylinder Head Asbestos Free | 1 | 11121407805 | $473.93 | Shop at ECS Tuning | |||||
| Gasket set without cyl.head gasket | ||||||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
