Cylinder head cover for BMW 5 Series E39 M5 (1999)

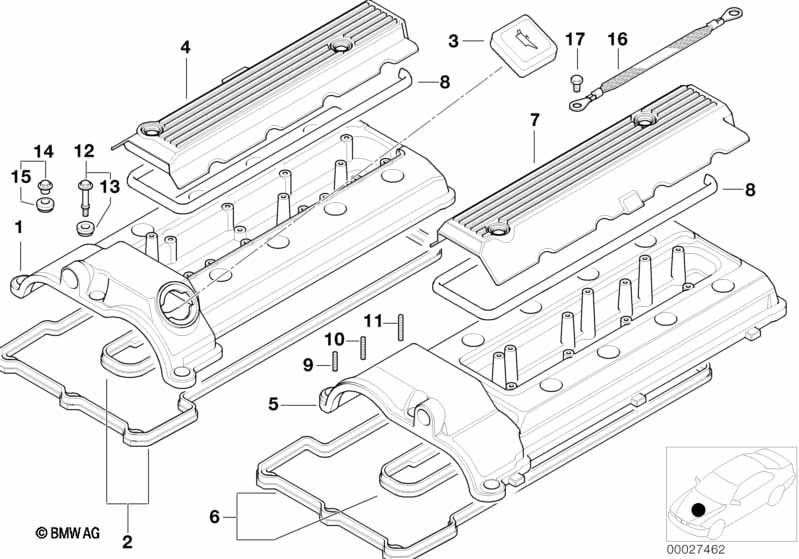

This Cylinder head cover technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO CYLINDER 1-4 | ||||||||||
| 01 | Rocker box cover right | 1 | 11121406776 | $760.26 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Profile-gasket | ZYL.1-4 | 1 | 11120001269 | $43.57 | Shop at ECS Tuning | ||||
| 03 | Cap for oil filler | 1 | 11127509328 | $7.78 | Shop at ECS Tuning | |||||
| 04 | Covering right | 1 | 11121406033 | $159.42 | +core | Shop at ECS Tuning | ||||
| ONLY APPLIES TO CYLINDER 5-8 | ||||||||||
| 05 | Rocker box cover left | 1 | 11121406779 | $760.26 | +core | Shop at ECS Tuning | ||||
| 06 | Profile-gasket | ZYL.5-8 | 1 | 11120001278 | $43.57 | Shop at ECS Tuning | ||||
| 07 | Covering left | 1 | 11121406035 | $159.42 | ENDED, +core | Shop at ECS Tuning | ||||
| 08 | Profile-gasket | 2 | 11121406744 | $53.11 | Shop at ECS Tuning | |||||
| 09 | Stud bolt | M6X25-ZN | 2 | 07129908100 | $0.20 | Shop at ECS Tuning | ||||
| 10 | Stud bolt | M6X30-ZNNIV SI | 2 | 07129904544 | $1.42 | Shop at ECS Tuning | ||||
| 11 | Stud bolt | M6X35-ZNS3 | 18 | 07129903886 | Shop at ECS Tuning | |||||
| 12 | Collar screw | 6 | 11121406175 | $3.27 | Shop at ECS Tuning | |||||
| 13 | Rubber seal | 6 | 11121721879 | $1.20 | Shop at ECS Tuning | |||||
| 14 | Cap nut | M6 | 20 | 11121747162 | $3.10 | Shop at ECS Tuning | ||||
| 15 | Rubber seal | 20 | 11121437395 | $1.17 | Shop at ECS Tuning | |||||
| 16 | Earth strap | 2 | 11121736201 | $5.78 | Shop at ECS Tuning | |||||
| 17 | Hex bolt with washer | M6X14-U1-8.8 | 2 | 07119905525 | $0.47 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
