Crankcase-Ventilation/oil separator for BMW 5 Series E39 M5 (1999)

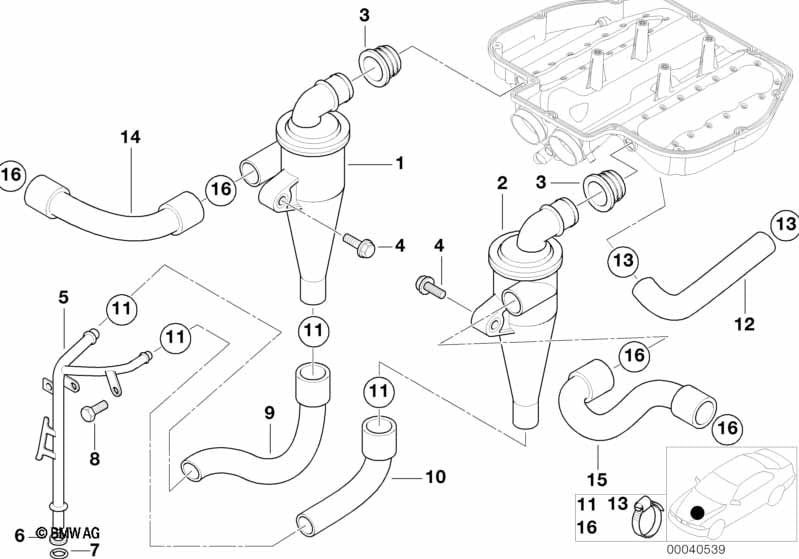

This Crankcase-Ventilation/oil separator technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil separator | ZYL. 1-4 | 1 | 11151406788 | $33.39 | Shop at ECS Tuning | ||||
| 02 | Oil separator | ZYL. 5-8 | 1 | 11151406789 | $33.39 | Shop at ECS Tuning | ||||
| 03 | Gasket | 2 | 11151406790 | $16.71 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M6X20-U2-8.8 | 2 | 07119903995 | $0.53 | Shop at ECS Tuning | ||||
| 05 | Oil pipe outlet | 1 | 11151407310 | $89.42 | Shop at ECS Tuning | |||||
| 07 | O-ring | 15,0X5,0 | 1 | 11431707164 | $4.06 | Shop at ECS Tuning | ||||
| 07 | Washer | 1 | 11437838127 | $3.19 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M6X12-U1-8.8 | 2 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Return hose | ZYL. 1-4 | 1 | 11151407344 | $10.25 | Shop at ECS Tuning | ||||
| 10 | Return hose | ZYL. 5-8 | 1 | 11151406902 | $7.25 | Shop at ECS Tuning | ||||
| 11 | Hose clamp | L15-19 | 4 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 12 | Return hose | 1 | 11151406900 | $7.25 | Shop at ECS Tuning | |||||
| 13 | Hose clamp | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 14 | Vent hose | ZYL. 1-4 | 1 | 11151406952 | $15.37 | Shop at ECS Tuning | ||||
| 15 | Vent hose | ZYL. 5-8 | 1 | 11151406953 | $15.37 | Shop at ECS Tuning | ||||
| 16 | Hose clamp | L18-24 | 4 | 07129952109 | $1.07 | Shop at ECS Tuning |
