Belt Drive Water Pump/Alternator for BMW 5 Series E39 M5 (1999)

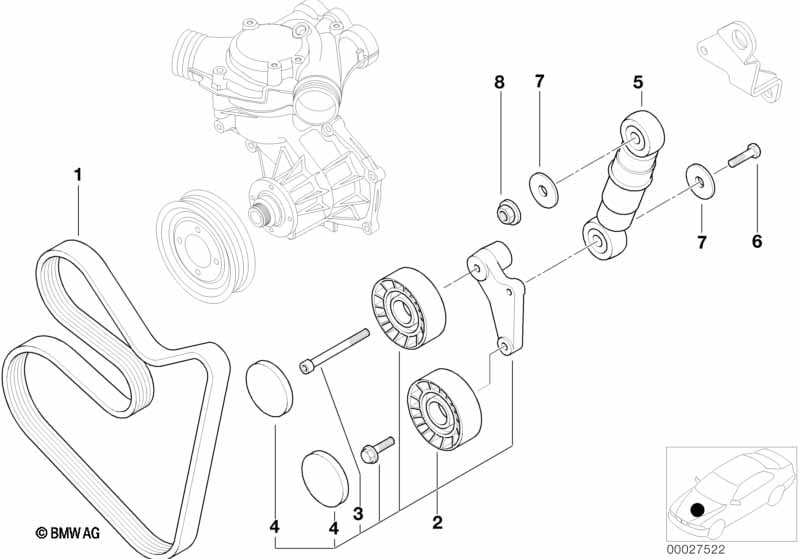

This Belt Drive Water Pump/Alternator technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ribbed v-belt | 7K X 1629 | 1 | 11287833264 | $45.22 | Shop at ECS Tuning | ||||
| 02 | Adjusting pulley with lever | 1 | 11282248214 | $138.08 | Shop at ECS Tuning | |||||
| 03 | Fillister-head screw | M8X80 | 1 | 11281435115 | $6.43 | Shop at ECS Tuning | ||||
| 04 | Protection cap | 2 | 11281435114 | $2.37 | Shop at ECS Tuning | |||||
| 05 | Belt tensioner | 1 | 11281709613 | $101.95 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M8X30-8.8-ZNS3 | 1 | 07119902901 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Washer | 2 | 11287835130 | $0.72 | Shop at ECS Tuning | |||||
| 08 | Hex nut with plate | M8-ZNS3 | 1 | 07129904862 | $1.12 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 M5 Belt Drive Water Pump/Alternator?
- This technical diagram illustrates the Belt Drive Water Pump/Alternator within the Engine group for the 5 Series E39 M5 produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Ribbed v-belt (Part #11287833264).
- Which models use the hardware listed in this Belt Drive Water Pump/Alternator?
- The hardware and components featured in the Belt Drive Water Pump/Alternator are specific to the 5 Series E39 M5 produced during 1999. These technical specifications ensure that parts like the Ribbed v-belt (11287833264) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Belt Drive Water Pump/Alternator assembly?
- Each item in the Belt Drive Water Pump/Alternator corresponds to the numbered list below the illustration. For the 5 Series E39 M5, you can identify the Ribbed v-belt by locating its position on the schematic, which then links to the official BMW part number 11287833264 for the Engine section.
